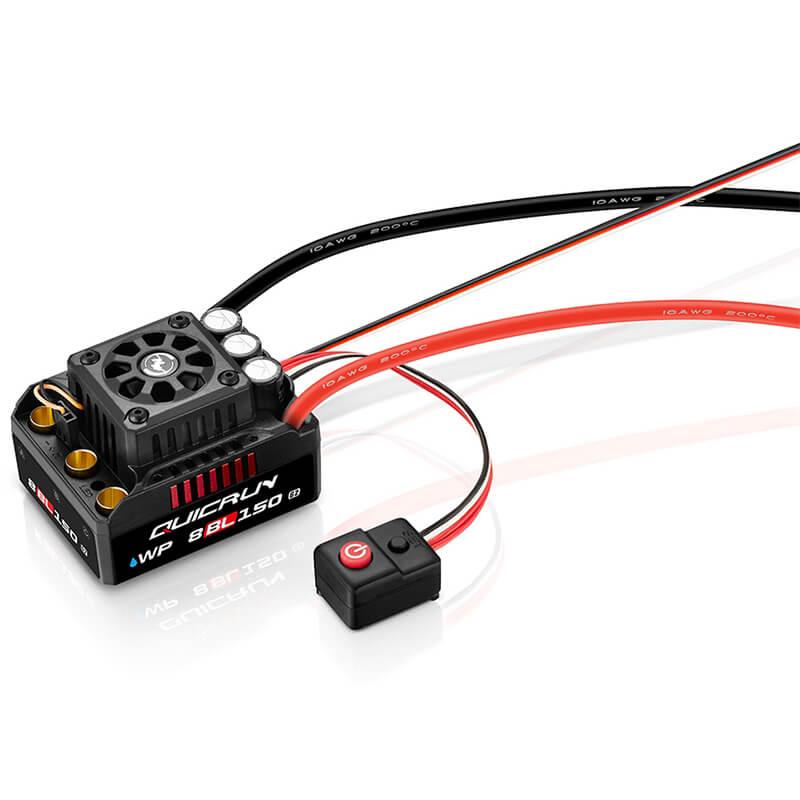

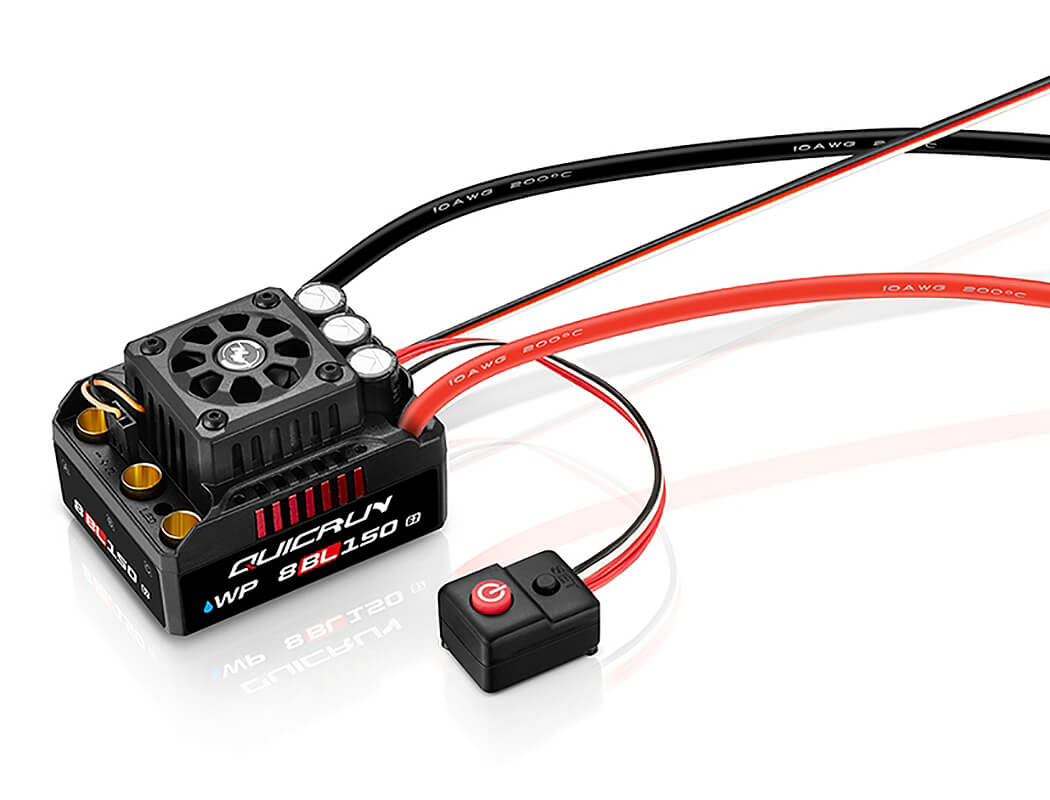

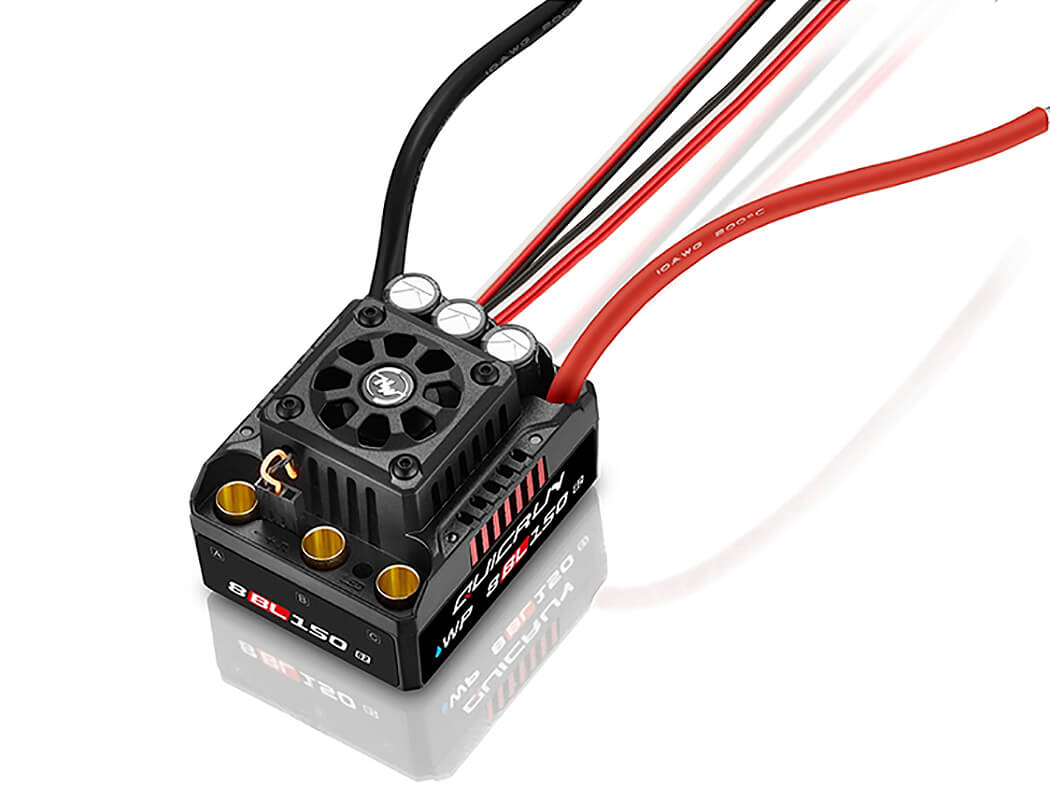

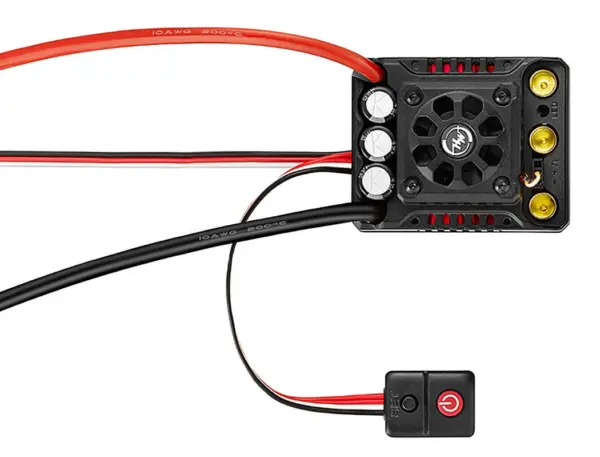

Hobbywing Quicrun Wp 8bl150 G2 Brushless Sensorless Esc 150a

£79.99

Just a few left

SKU HW30109003 Category Tag Brand:
Joshua Evans
Joshua Evans
Ordered a new brushless motor and ESC combo for my crawler, and it’s working like a dream. Shipping was surprisingly fast, and the parts were exactly as described. I had a minor issue with the wiring, and customer service helped me figure it out over email within a few hours. Great experience overall.
Thomas Pearson
Thomas Pearson
Just got my first RC drift car from this site, and it’s been a blast! The car arrived well-packed and in perfect condition. I had some questions about the best batteries to pair with it, and their support team was quick to respond with solid advice. It’s refreshing to deal with a company that actually knows their products. Will definitely order from them again.
LT
LT
Purchased:Kyosho EP Fantom 4WD EXT CRC II 112 Kit (Legendary Series)
Good communication with the seller would definitely use again.
Alex
Alex
Purchased: MJX H8H Hyper Go RC Crawler Brushless 1:8th Scale Crawler Truck (Blue Orange)
Arrived with in 2 days, Arrived as stated in a well Packaged box, will definitely be ordering again.
Oli Short
Oli Short
Delivery was a little late (3 days), but arrived 1 day late. Think this was royal mail to be fair. Everything else good!

Introducing the QuicRun WP 8BL150 G2 speed control.

Innovative intelligent freewheeling technology.

High efficiency and low temperature rise. The innovative intelligent freewheeling technology enables the ESC to have higher driving efficiency and lower operating temperature. The stability and reliability of the ESC is improved.

Upgraded BEC

The BEC has been upgraded from the previous generation from 6V/3A to 6V/7.4V and is fully-adjustable. It is equipped with a continuous current of 6A, and up to a maximum current of 12A. It supports most high-voltage servos on the market.

Exceptional protection and operation

Equipped with excellent waterproofing and dustproofing performance to cope with various climatic conditions and harsh environments. The protection level of the ESC reaches IP67.

Please Note: The IP67 protection level mentioned above is splash-proof, water-proof, and dust-proof under normal use, but it is not permanently effective, and the protection performance may decline due to daily wear and aging.

Do not soak in water for a long time, otherwise the product may be damaged.

Efficient cooling system

The internal power board of the ESC is covered with a patented copper heat conduction bus bar to help facilitate the rapid conduction of internal heat to the radiator. Additionally, a fan is added to dissipate heat. These constitute to a highly reliable cooling system to ensure that the ESC is always in a safe operating temperature.

Durable electronic switch

The upgraded electronic power switch solves the corrosion and impact damage that occurs frequently in traditional mechanical switches in dusty and humid environments.
Accidental shutdowns are no longer an issue. he life-span of the switch is 50000 times longer. Waterproof, dustproof, impact-resistant.

Capacitor overheating protection function

Capacitor overheating protection feature can effectively prevent exploding customers due to overload usage. This helps to eliminate damages to the ESC.

Super large built-in capacitor

The built-in capacitor capacity of the ESC is as high as 2040 uF, and eliminates the need for external capacitors.

Specification

Scale: 1/8th
Brushed/Brushless: Brushless
Sensored/Sensorless: Sensorless
Waterproof: Waterproof
Current Continuous: 150A
Burst: 950A
Input: 2-6S LiPo
BEC Output: Switch Mode 6V/7.4V @6A
Input Wires: Black-10AWG-150MM / Red-10AWG-150MM
Output Connectors: 6.5mm Gold (female)

ESC Programing Via:
SET Button on ESC: Not Supported
LED Program Box: Supported
LCD Program Box G2: Supported
OTA Programmer: Not Supported
Program Port: Separate Program Port
Firmware Upgrade: Supported
Motor Supported: Sensored and sensorless brushless motor
Suitable Car: 1/8th Truck. Monster Truck.
KV Rating/T Count:
With 4S Lipo: KV ≤ 3000
With 6S Lipo: KV ≤ 2400 4274 size motor
Size: 64mm(L) * 48mm(W) * 40.4mm(H)
Weight: 169.5g (Including Wires
