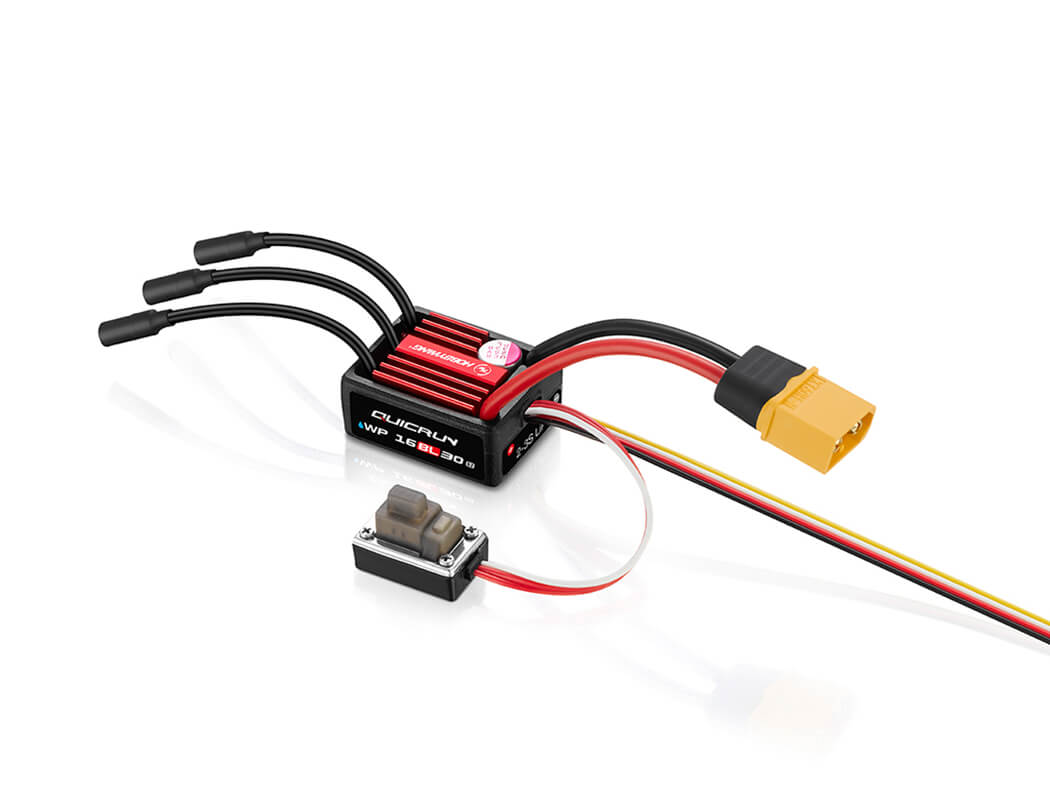

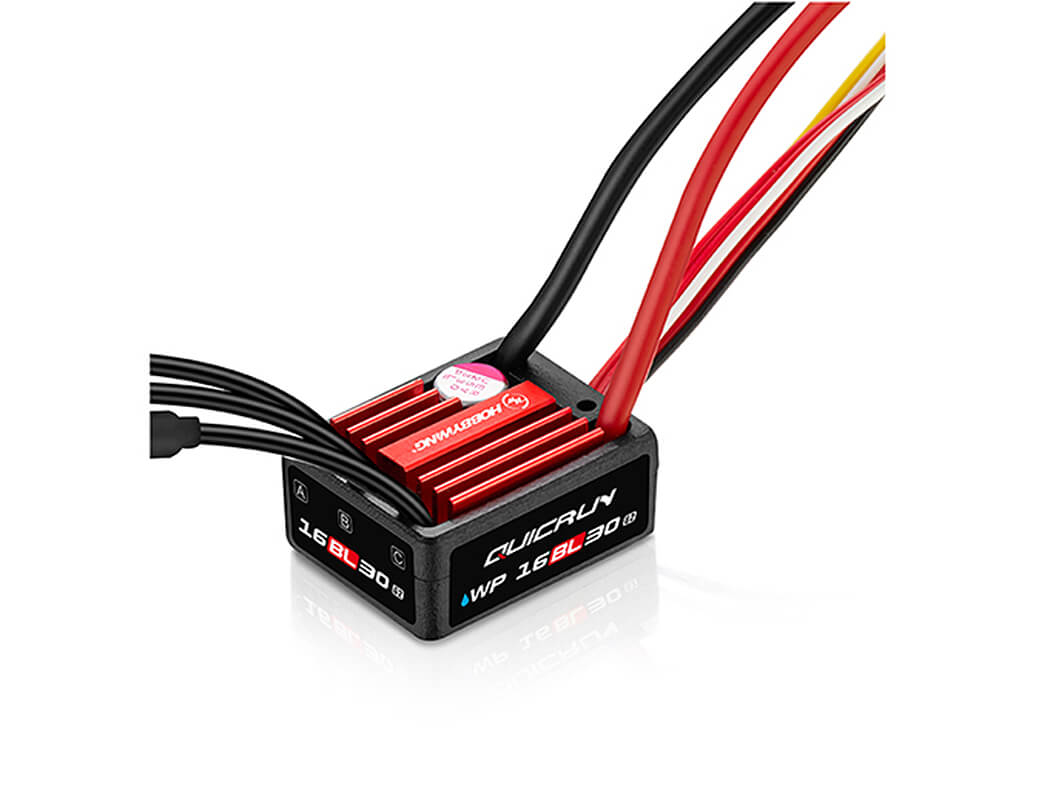

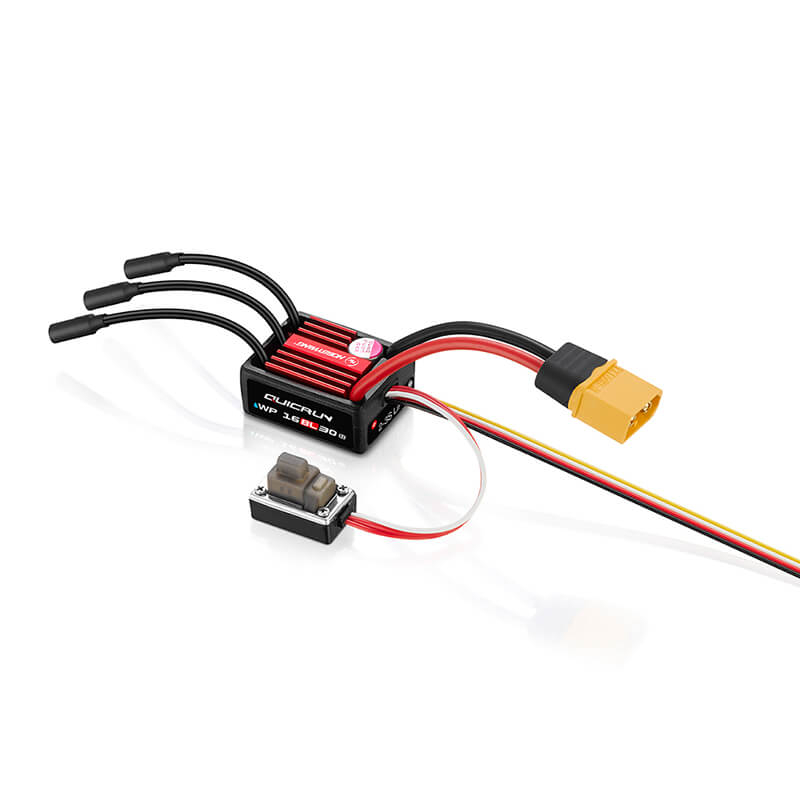

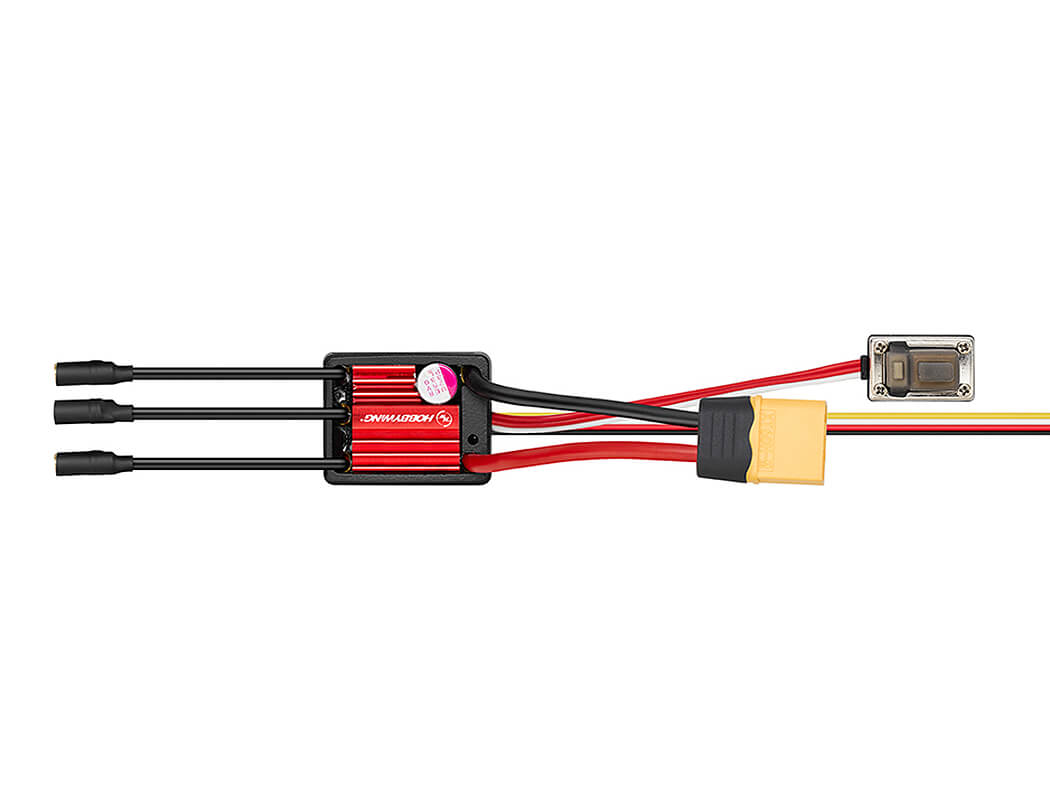

Hobbywing Quicrun Wp 16bl30 G2 Brushless Sensorless Esc (30a)

Hobbywing Quicrun Wp 16bl30 G2 Brushless Sensorless Esc (30a) - Image 2

Hobbywing Quicrun Wp 16bl30 G2 Brushless Sensorless Esc (30a) - Image 3

Hobbywing Quicrun Wp 16bl30 G2 Brushless Sensorless Esc (30a)

Name: Hobbywing Quicrun Wp 16bl30 G2 Brushless Sensorless Esc (30a) - The best place for RC cars in the UK & Europe
SKU: HW30110001
Price: 27.49 GBP
Availability: InStock

£27.49

Add a review.

Just a few left

SKU HW30110001 Category RC Cars Tag nobid Brand: Hobbywing

Ordered a new brushless motor and ESC combo for my crawler, and it’s working like a dream. Shipping was surprisingly fast, and the parts were exactly as described. I had a minor issue with the wiring, and customer service helped me figure it out over email within a few hours. Great experience overall.

Just got my first RC drift car from this site, and it’s been a blast! The car arrived well-packed and in perfect condition. I had some questions about the best batteries to pair with it, and their support team was quick to respond with solid advice. It’s refreshing to deal with a company that actually knows their products. Will definitely order from them again.

Good communication with the seller would definitely use again.

All good, would order from this seller again.

Arrived with in 2 days, Arrived as stated in a well Packaged box, will definitely be ordering again.

Delivery was a little late (3 days), but arrived 1 day late. Think this was royal mail to be fair. Everything else good!

HOBBYWING QUICRUN WP 16BL30 G2 BRUSHLESS SENSORLESS ESC (30A)

Introducing the Hobbywing QuicRun 16BL30 G2 Waterproof brushless speed control.

Intelligent Freewheeling for Lower Heat and Enhanced Performance.

The ESC features intelligent freewheeling technology, delivering higher drive efficiency, lower operating temperatures, improved stability, and greater reliability.

Compact Size for Easier Installation and Flexible Layout.

Compared to the previous generation 16BL30 ESC, the G2 ESC is significantly smaller: 8.3% shorter in length, 7.1% narrower, and 16.7% lower in height. This design is compact and makes installation easier and allows for cleaner wiring on the chassis.

BEC Upgrade Compared to the G1 ESC.

The BEC’s continuous current has been upgraded from 1A to 2A.
A peak current of up to 4A.
The output voltage can be switched between 6V and 7.4V.

Easily powering high-torque and high-voltage servos. This provides faster response and more precise control.

High Protection Rating.

IP67-rated protection allows it to easily handle harsh environments such as rain, sand, and muddy roads, ensuring reliable performance without environmental limitations.

Note: The IP67 protection rating described above applies under normal usage conditions, providing splash resistance, water resistance, and dust resistance, as tested under controlled laboratory conditions. These protective features are not permanent, and protection performance may degrade over time due to regular wear and aging. Do not submerge the product in water for extended periods, as this may cause damage.

Multiple Programming Methods.

Supports three programming methods: LCD Program Box Pro, LED Program Box, and SET button, allowing users to conveniently select their preferred programming method for parameter adjustments.

Exceptional Value for Money.

Specifically designed for entry-level users, with HOBBYWING’s exceptional quality. Easy to operate and beginner-friendly, with no complex setup required.

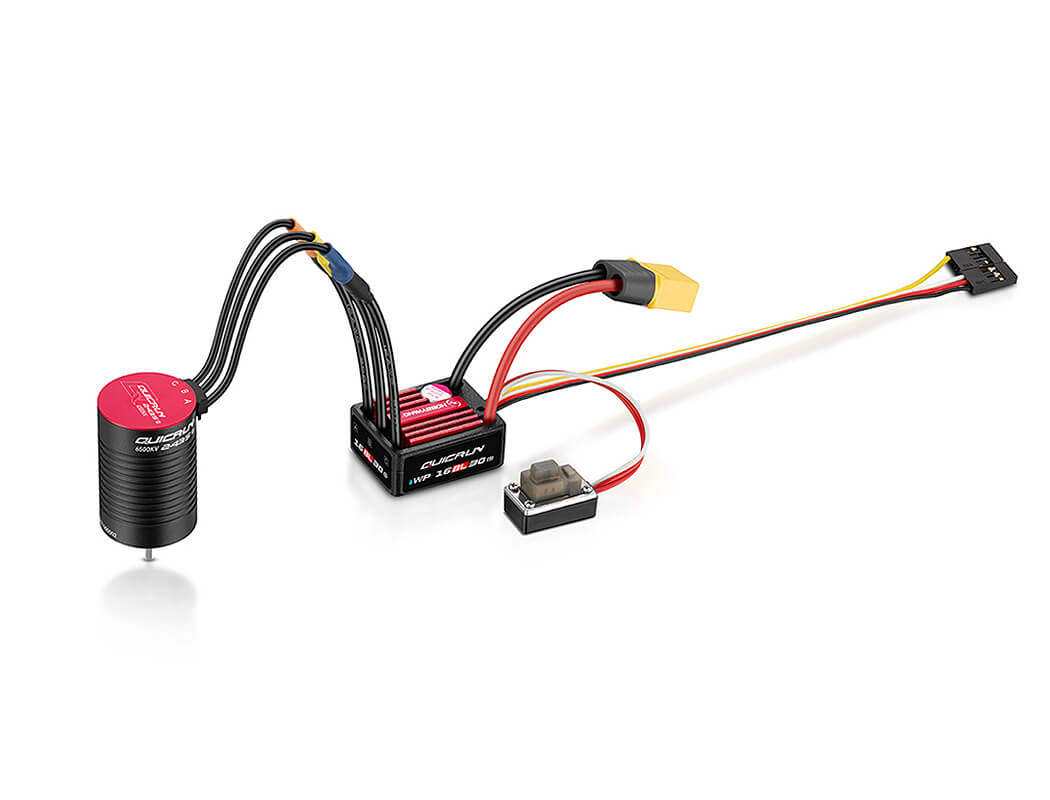

Perfect Match for QuicRun 2030 G2/2435 G3 Motors.

The ESC offers excellent compatibility when paired with QuicRun 2030 G2/2435 G3 motors, delivering smoother control.

Wide Compatibility.

The power system is suitable for both 1/16th & 1/18th scale hobby vehicles.

Specifications

Scale: 1/16th, 1/18th
Brushed/Brushless: BL
Sensored/Sensorless: SL
Waterproof: Yes
Cont./Peak Current: 30A/100A
Input Voltage: 2-3S LiPo
BEC Output: 6V/7.4V@2A
Power Cord: Black-16AWG-75mm*1,Red-16AWG-75mm*1
Output Line: Black-16AWG-60mm*3
Power Plug: XT60
Output Plug: 3.5MM gold female plug

ESC Programing via:
SET Button on ESC: Supported
LED Program Box: Supported
LCD G2 Program Box: Supported
OTA Programmer: Not Supported
Program Port: Shared with Throttle Wire
Data Recording: Extreme value records: Not Supported
Real-time Data: Not Supported
Historical Data (line graph): Not Supported
Firmware Upgrade: Not Supported

Size: 33.4*26.8*15.1mm
Weight: 38.5g( Included wires & connectors)
Supported Motor Types: Sensorless brushless motor, sensored brushless motor (only works in sensorless mode)
Applicable Models: 1/16th?1/18th On-Road & Off-Road
Applicable Motor: QUICRUN 2435 G2
