Hobbywing Quicrun 10bl120 G2 Brushless Sensored/Sensorless Esc
Hobbywing Quicrun 10bl120 G2 Brushless Sensored/Sensorless Esc - Image 2
Hobbywing Quicrun 10bl120 G2 Brushless Sensored/Sensorless Esc - Image 3
Hobbywing Quicrun 10bl120 G2 Brushless Sensored/Sensorless Esc - Image 4
Hobbywing Quicrun 10bl120 G2 Brushless Sensored/Sensorless Esc - Image 5

Hobbywing Quicrun 10bl120 G2 Brushless Sensored/Sensorless Esc

£54.99

Add a review.

Just a few left

SKU HW30125002 Category Tag Brand:
Joshua Evans
Joshua Evans
Ordered a new brushless motor and ESC combo for my crawler, and it’s working like a dream. Shipping was surprisingly fast, and the parts were exactly as described. I had a minor issue with the wiring, and customer service helped me figure it out over email within a few hours. Great experience overall.
Thomas Pearson
Thomas Pearson
Just got my first RC drift car from this site, and it’s been a blast! The car arrived well-packed and in perfect condition. I had some questions about the best batteries to pair with it, and their support team was quick to respond with solid advice. It’s refreshing to deal with a company that actually knows their products. Will definitely order from them again.
LT
LT
Purchased:Kyosho EP Fantom 4WD EXT CRC II 112 Kit (Legendary Series)
Good communication with the seller would definitely use again.
Pete Goddard
Pete Goddard
Purchased: Flywing BELL-206-V3 RTF RC Helicopter
All good, would order from this seller again.
Alex
Alex
Purchased: MJX H8H Hyper Go RC Crawler Brushless 1:8th Scale Crawler Truck (Blue Orange)
Arrived with in 2 days, Arrived as stated in a well Packaged box, will definitely be ordering again.
Oli Short
Oli Short
Delivery was a little late (3 days), but arrived 1 day late. Think this was royal mail to be fair. Everything else good!

The QuicRun 10BL120 sensored ESC was specially designed for beginners and intermediate modelers. This is the new G2 upgraded version of the speed controller and brings a wealth of new features and upgrades. It is designed for practice and daily training of 1/10th, 1/12th scale touring cars, buggies, F1 and draft cars as well as 1/10th scale rock crawlers.

With the Dual (Sensored/Sensorless) Drive Mode, it’s compatible with different motors and brings racers two different control feel and with it’s compact design, it’s applicable to various chassis.

The SET button on the ESC allows the user to easily program or factory reset the ESC with ease.

Features

  • High Reliability & Durability
  • Upgraded BEC output voltage and current
  • Adjustable boost and turbo timing
  • Multiple protection functions: battery low voltage protection, esc overheat protection, throttle signal loss protection, overload protection
  • Supports firmware upgrade of ESC (Multi-function LCD program box need to be purchased)

Specifications

Scale: 1/10 & 1/12
Brushed/Brushless: Brushless
Sensored/Sensorless: Sensorless/Sensored
Waterproof: No
Motor Limit: 2S >4.5T 3650 (540)
Motor Limit: 3S >10.5T 3650 (540)
Cont./Peak Current: 120A/760A
Input Voltage: 2S-3S
BEC Output: Switch Mode: 6.0v/7.4V @4A
Input Wires: Black 12AWG 200mm*1 / Red 12AWG 200mm*1
Output Wires: Blue 12AWG 200mm*1 / Yellow 12AWG 200mm*1 / Orange 12AWG 200mm*1
Input Connectors: No
Output Connectors: No

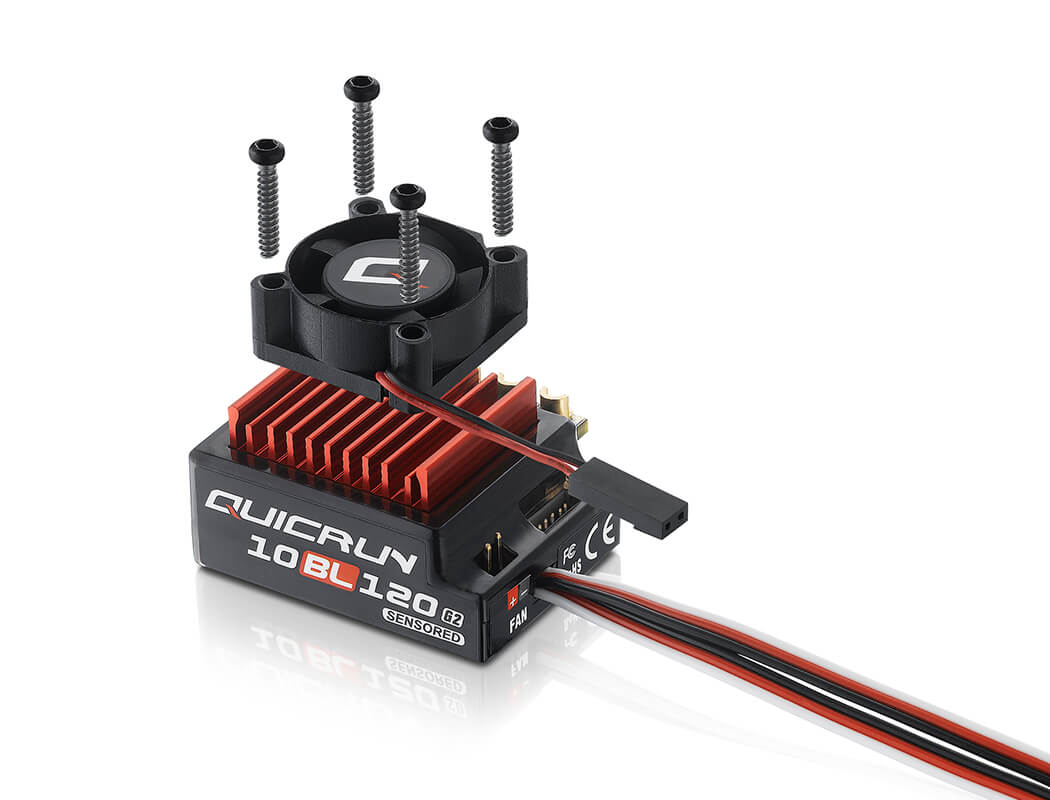

Fan Size: 25 x 25 x 10mm
Voltage Range: 5-7.4V
LCD Program Box: LED/LCD G2/PRO Supported
OTA Module: No
Size: 44 x 36.8 x 32.3mm
Weight: 101.5g (inc Wires)
