UH-1 V4 GPS Stabilized 6CH RC Scale RC Helicopter
Product Overview
The UH-1 is a famous general-purpose helicopter, nicknamed “Huey” and “Iroquois.” Its military number was changed from HU-11963 to UH-1 “Huey” in 1963. The UH-1 was widely used by the army, air force, and navy. Now, this legendary helicopter comes in a scale RC version, complete with advanced GPS stabilization and enhanced detail for an immersive flying experience.
Product Features
- Tailored EPDM sensor damping design to reduce vibration and improve flight stability.
- M10 GPS Module for faster satellite search and improved signal quality.

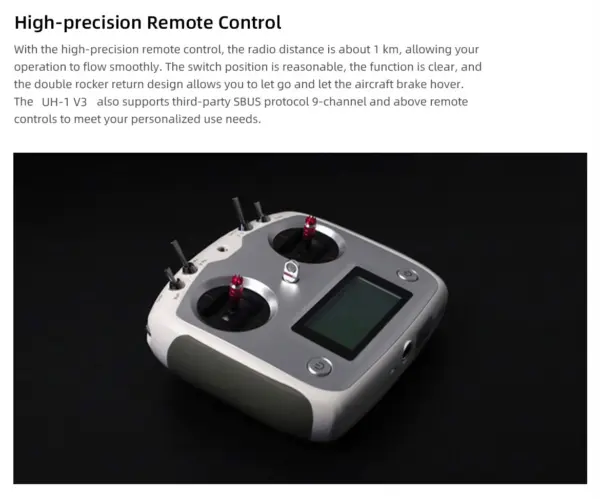

- 10-channel transmitter with SBUS protocol support for precision control.
- Automatic fly mode with O Fly and 8 Fly patterns for versatile flying experiences.
- One-key/low battery return for safe flight landings.
- High scale detail with engraved lines, metal rotor heads, and restored paint.
Specifications
| Feature | Specification |
|---|---|
| Length (without blades) | 750mm |
| Height | 220mm |
| Width | 170mm |
| Weight (exclude battery) | 869g |
| Main rotor diameter | 810mm |
| Main rotor length (one) | 370mm |
| Tail rotor diameter | 125mm |
| Gear specification | Motor main gear: 13T, Main drive gear: 81T, Tail drive motor: Brushless motor |
| Motor | 3508 Brushless motor |
| ESC | 60A |
| Flight mode | GPS Mode, 3D Manual Mode, Low voltage return, Semi-automatic assisted flight |
| Satellite positioning module | GPS/GLONASS/Galileo |
| Hovering precision | Level: ±1.5m, Vertical: ±0.5m (when GPS is working well) |
Stable Flying Experience
The UH-1 V4 is equipped with the M10 GPS positioning module, which provides more stable flight, better signal quality, and precise hovering capability. The flight experience is similar to modern drones, making the aircraft easy to control, even for beginners.
Power Configuration
Powered by a 16V brushless motor, the helicopter delivers high efficiency and a 20+ minute flight time, giving you an extended and powerful flight experience. The easy-to-maintain modular design allows for quick battery replacement without removing the tailpipe, ensuring convenient handling.
Safety Features
Enjoy multiple security protections, including one-key return and low battery return. When the power reaches a set voltage, the helicopter will automatically return to its takeoff point and land, provided that enough power is reserved for the return flight.
Included:
- 1x Flywing UH-1 Huey V4
- 1x Quick start guide
- 1x Screwdriver
- 1x Type-C USB cable
Required to complete:
- Flight battery
- Charger
- Transmitter
Frequently Asked Questions
Whilst the Huey V4 is described as suited to experienced RC pilots, the GPS stabilisation and automatic fly modes do make it more accessible than traditional helicopters. However, RC helicopter flying requires practice; if you're new to RC helicopters specifically, you may want to start with a smaller trainer model first.
The Huey V4 is powered by a 16V brushless motor and delivers 20+ minutes of flight time per charge. The product uses a modular design for quick battery replacement, though the specific battery type and exact charge time are not detailed in the product information.
The Flywing Huey V4 is supplied as PNP (Plug and Play), meaning it includes the helicopter body, brushless motor, ESC, GPS module, and metal rotor heads. You will need to supply your own compatible 16V battery, charger, and 10-channel SBUS radio transmitter to fly it.
The helicopter measures 750mm in length (without blades), 220mm in height, and 170mm in width, with an 810mm main rotor diameter. It's a detailed scale replica of the legendary UH-1 military helicopter, though the exact scale ratio is not specified.
The Huey V4 features a 10-channel transmitter with SBUS protocol support, providing precise control for all helicopter functions. You'll need to supply your own compatible 10-channel SBUS radio system, as the PNP version does not include one.
