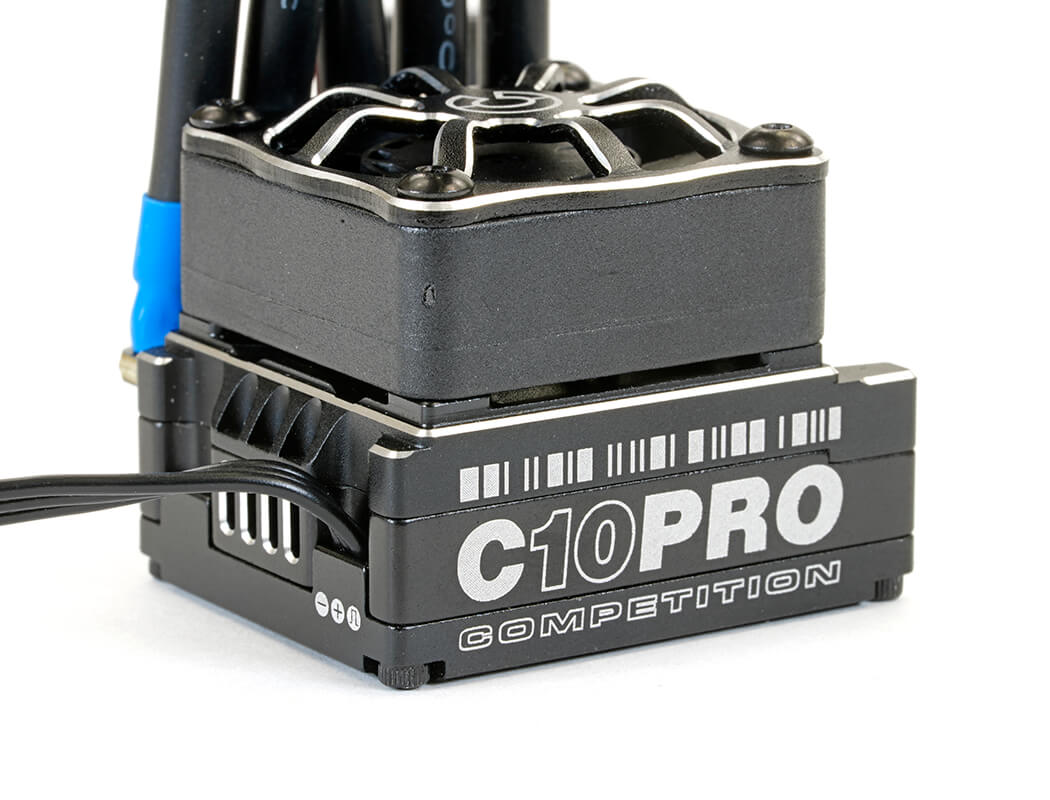

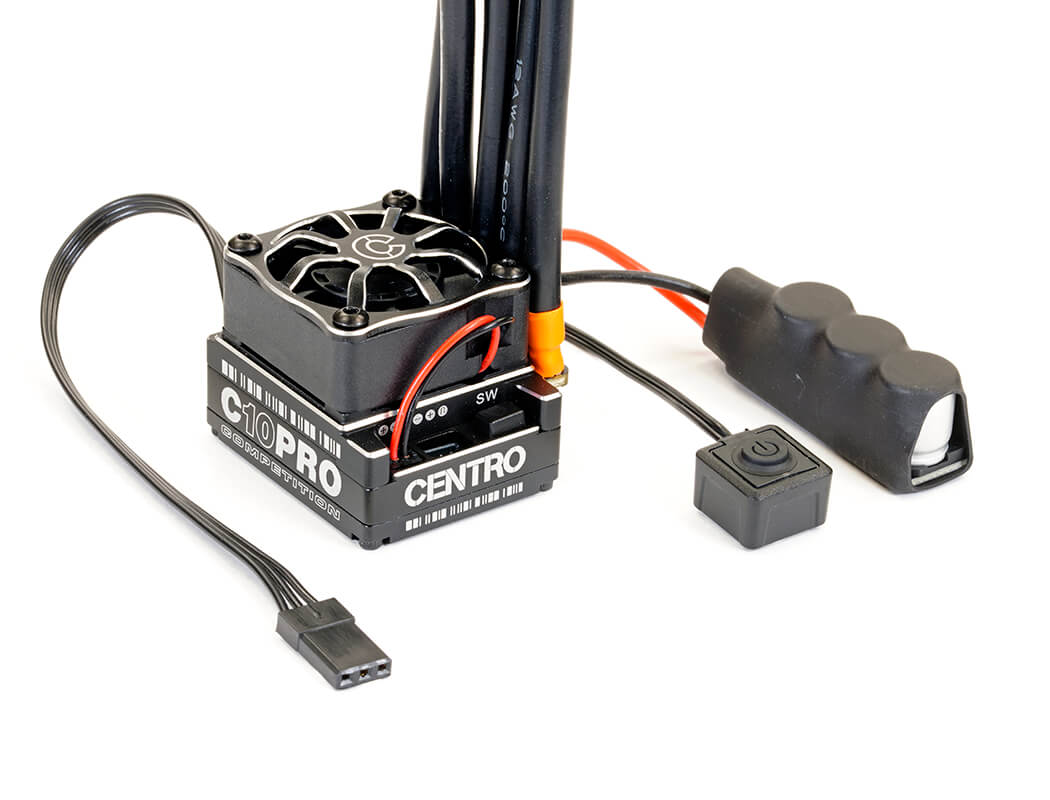

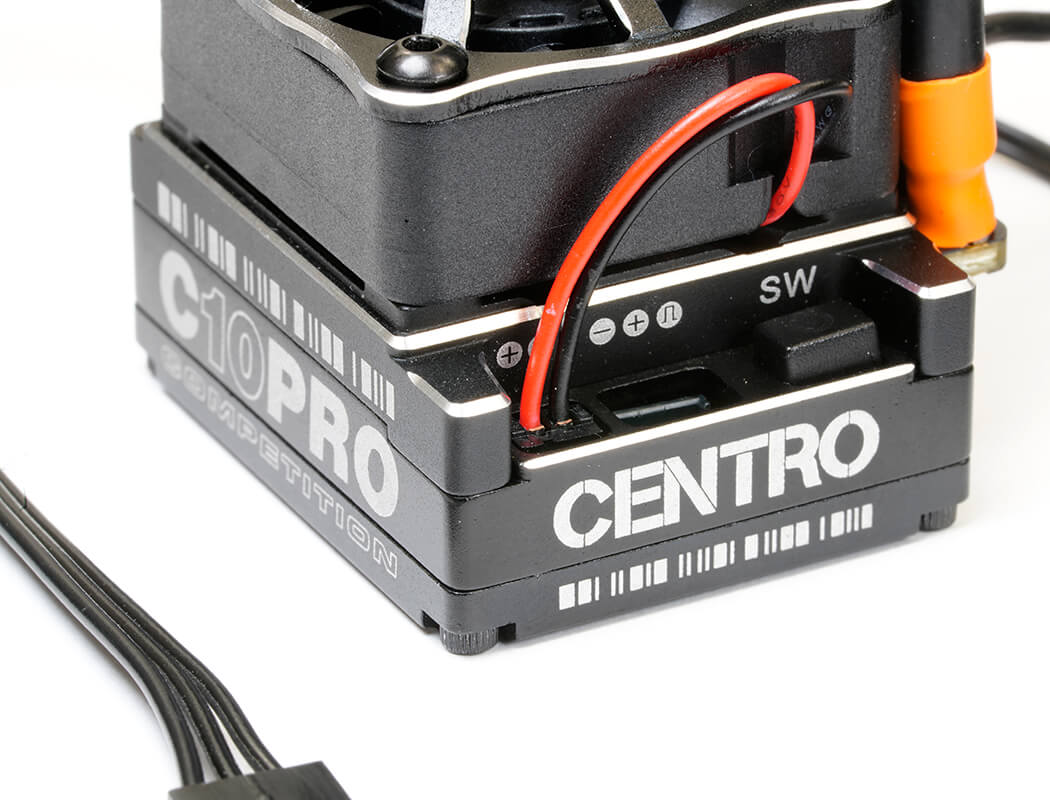

Centro C10 Pro Competition 1/10 Brushless Esc Speed Controler

CENTRO C10 PRO COMPETITION 1/10 BRUSHLESS ESC SPEED CONTROLER

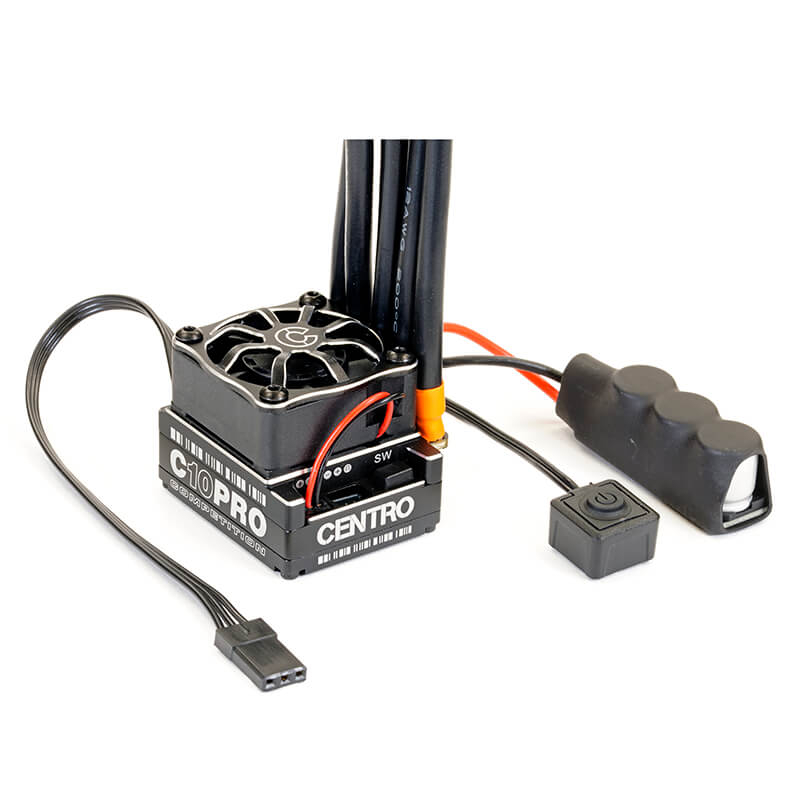

Get ahead of the curve with the new Centro C10 Pro Competition, a top-end brushless electronic speed controller destined to perform at the pinnacle of 1/10th scale RC racing.

Offering maximum power, linearity and drivability characteristics with its 160A rating and 32bit MCU, the C10 Pro Competition is designed specifically for use in 1/10th electric on and off road race cars.

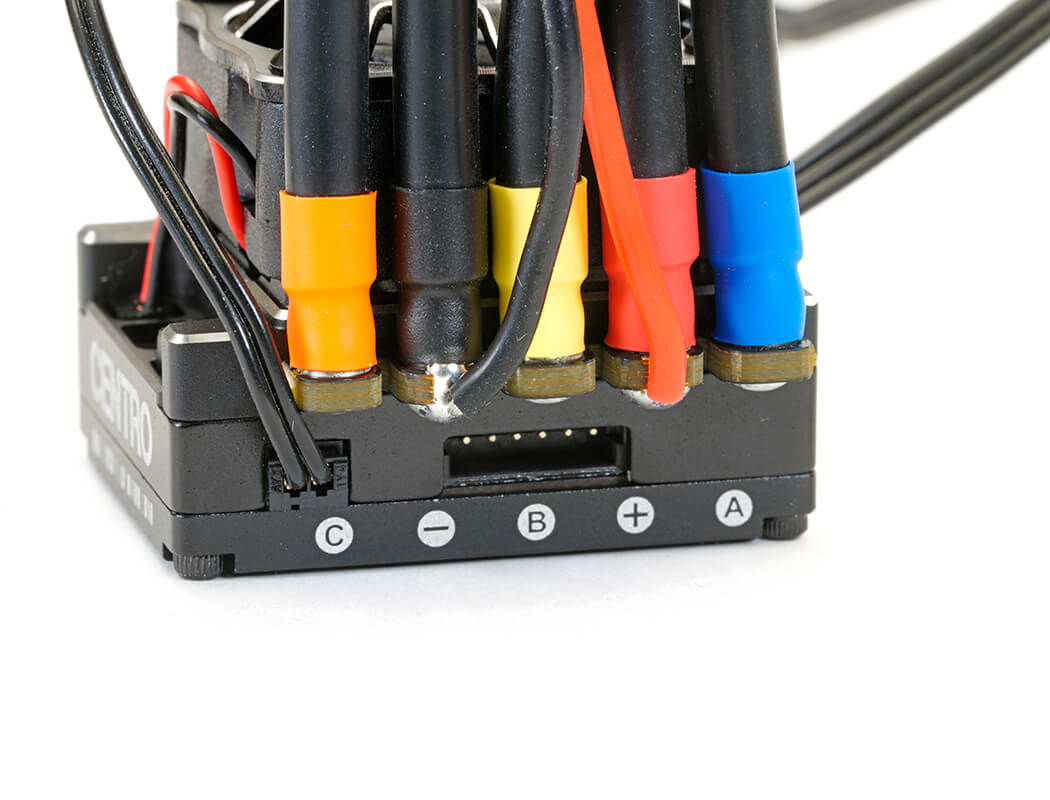

With a compact footprint which belies its performance, its pre-soldered, high current 12AWG wires and full aluminium case ensures optimum performance and efficiency is maintained. With the optional Centro Bluetooth module you can analyse real-time and post-race data, fine tune its parameters and to give yourself the edge over the competition!

ESC1 establishes a connection through the Bluetooth of the mobile phone and the Bluetooth of the ESC, so as to realize the functions of adjusting the parameters of the ESC, viewing the data, and upgrading the firmware.

Features

• ESC Programming via ESC-1 Mobile APP (using plug-in Bluetooth module)

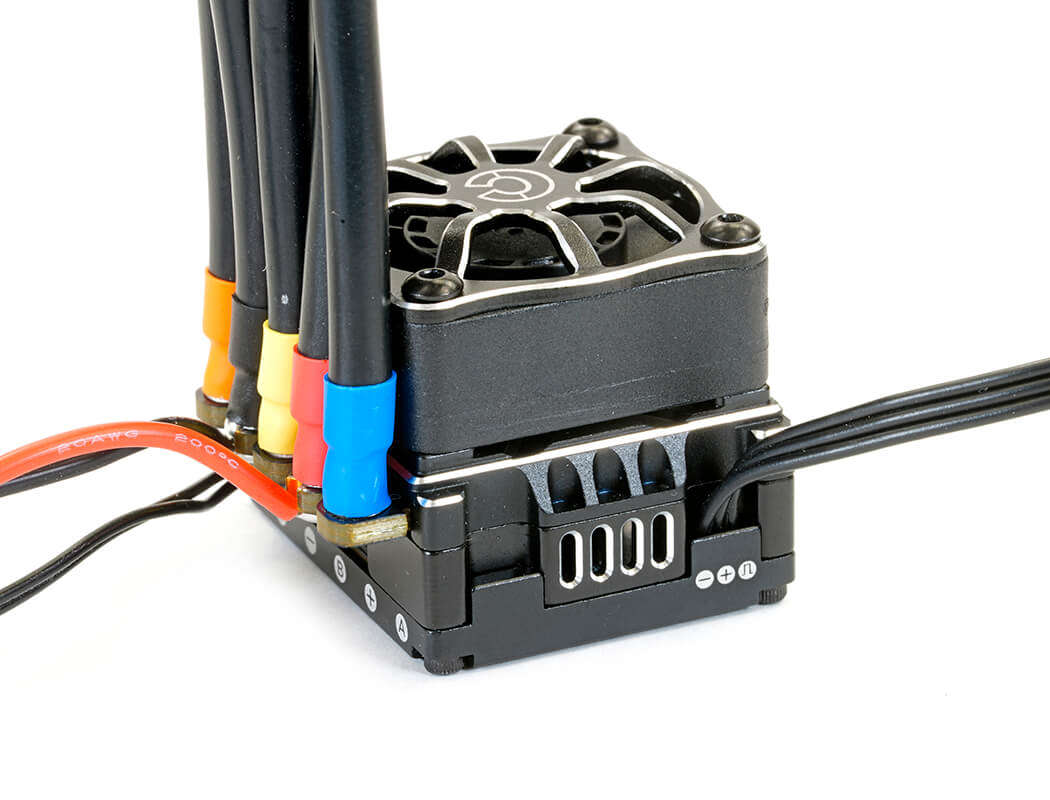

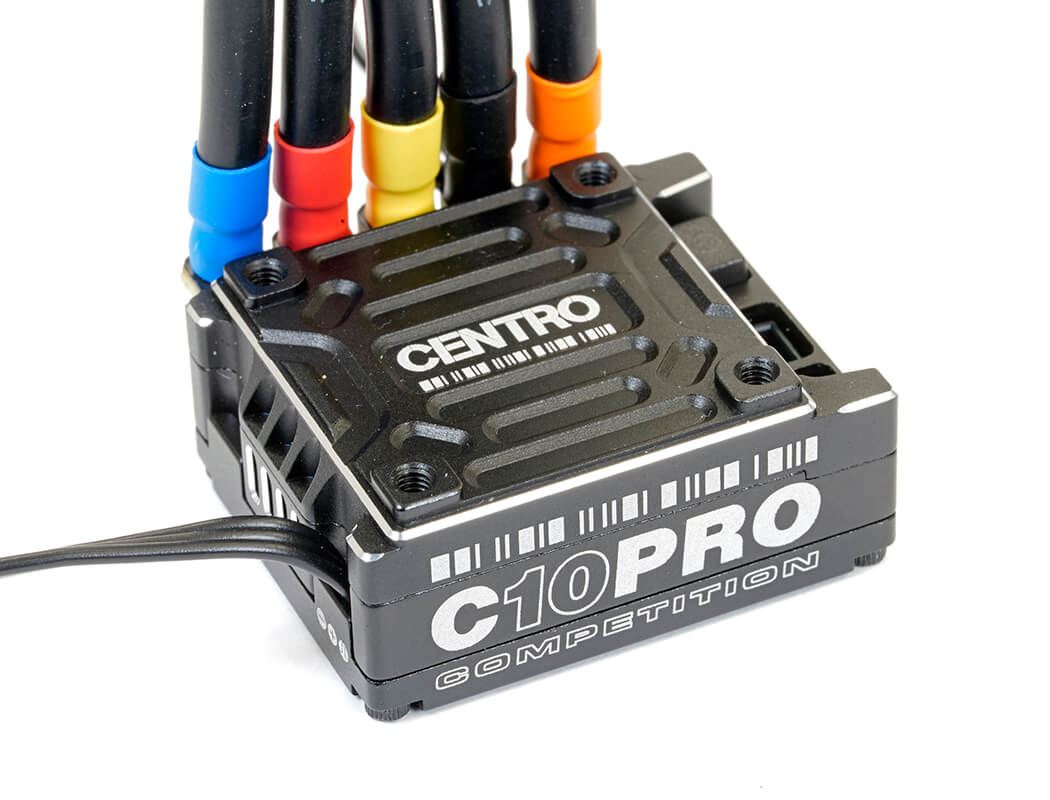

• CNC Machined Aluminium Case w/ Integrated Heat Sink

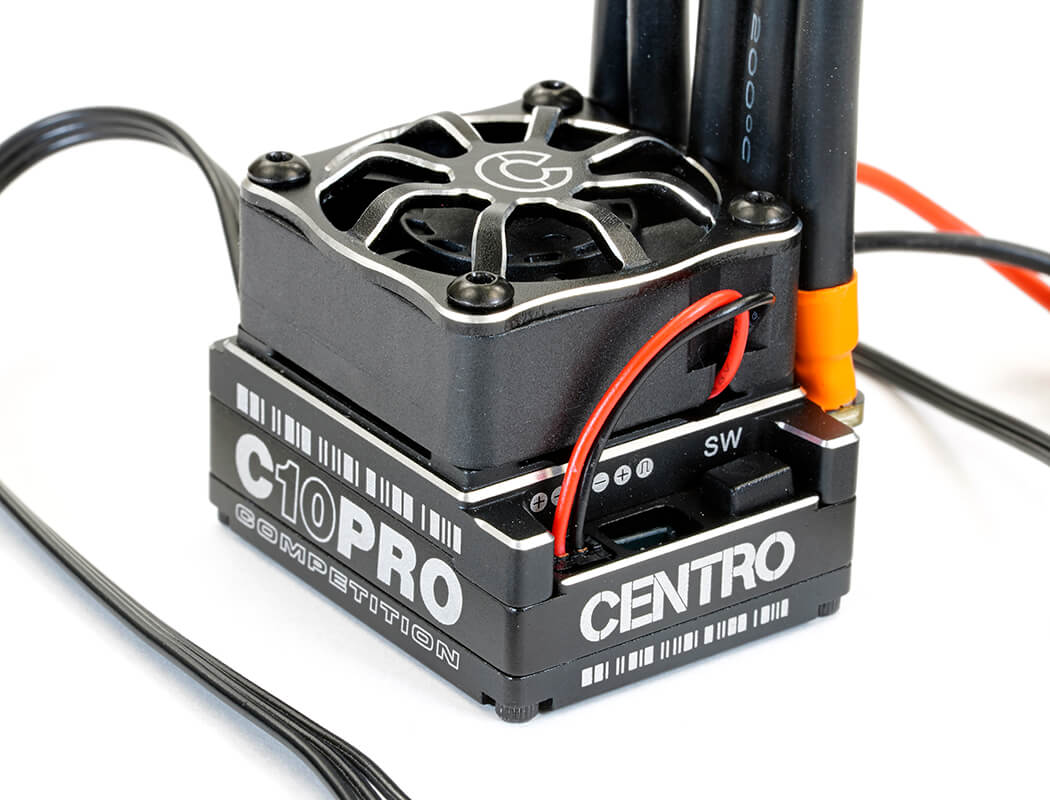

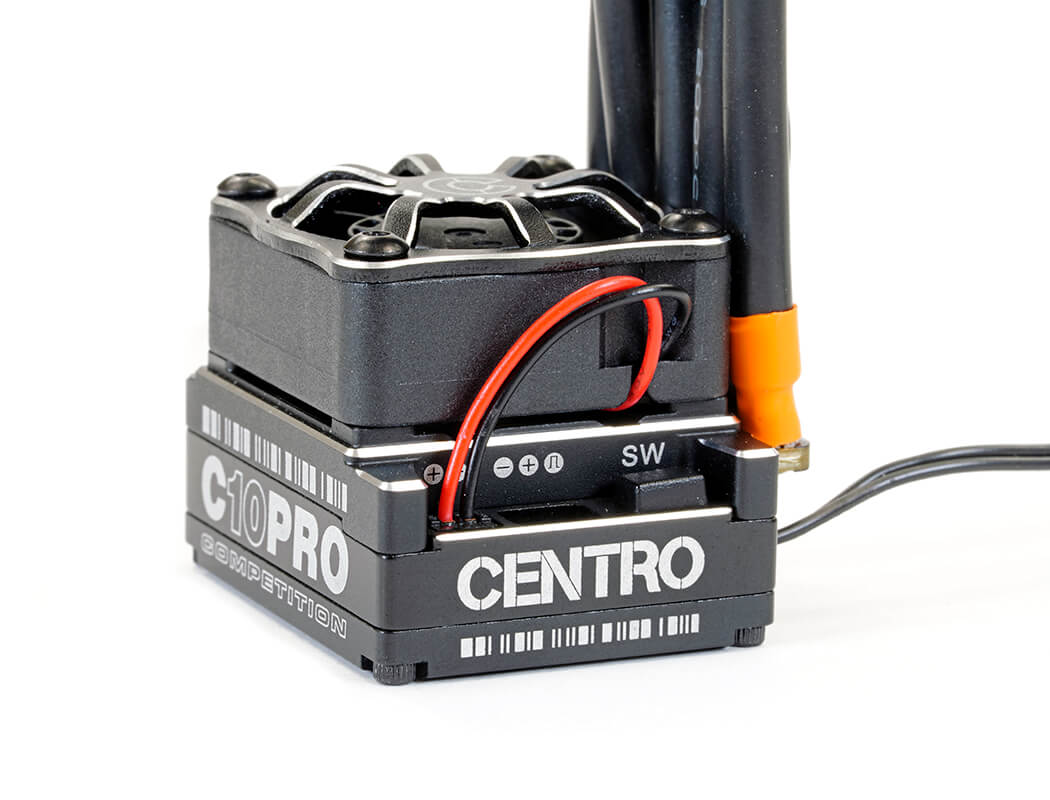

• CNC Aluminium Fan Cover
• 30mm Fan Unit
• Numerous Programmable Parameters Under:
  – General Settings
  – Throttle
  – Brake
  – Boost
  – Turbo
  – Data

Specifications

Continuous Current: 160A
Burst Current: 760A
Battery Input Voltage: 2-3S LiPo
BEC Output: 6.0V, 7.4V/4A (switch BEC)
Size: 38mm x 30.5mm x16mm (without fan)
Weight Without Fan: 96g
Motor Limit: 2S LiPo / 4.5T 540 or 3S LiPo / 6.5T 540

Please Note: Bluetooth module for C10 ESC available separately.
