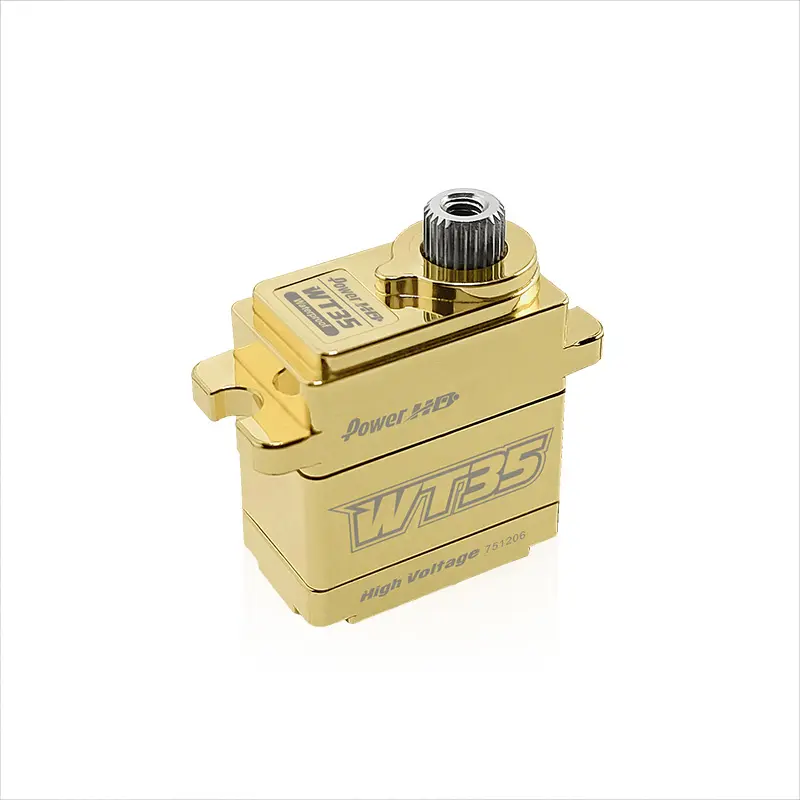

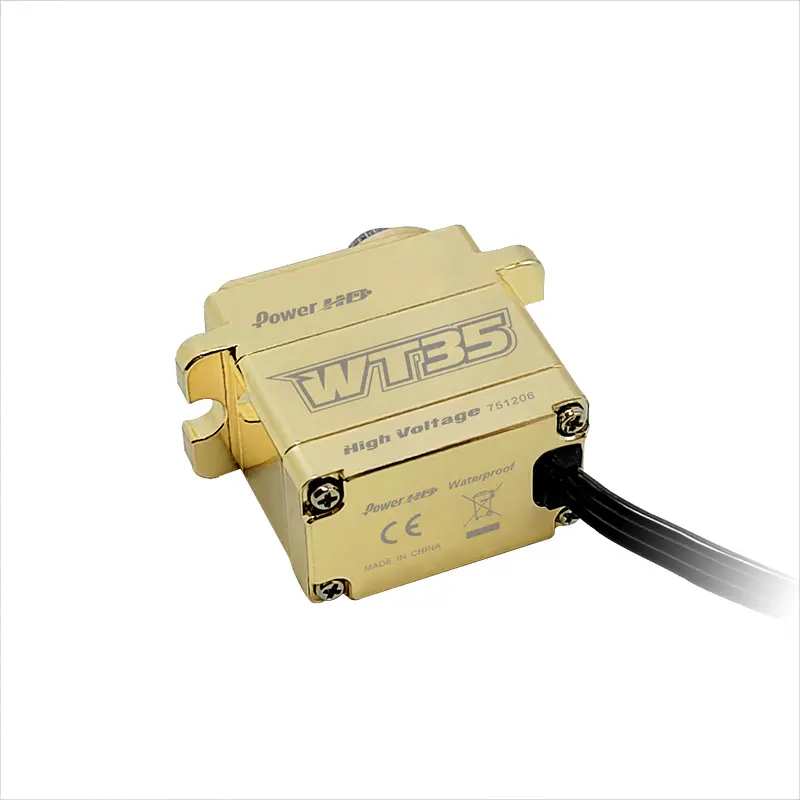

Power Hd Wt35 Brass Servo for TRX-4m Waterproof Hv 3.8kg/0.075s

Description

Torque(6.0V): 36.0 kg-cm / (499.9 oz/in)
Torque(7.4V): 42.0 kg-cm / (583.3 oz/in)
Torque(8.4V): 50.0 kg-cm / (694.4 oz/in)
Torque(4.8V): 3.0 kg-cm (41.7 oz/in)
Torque(6.0V): 3.5 kg-cm (48.6 oz/in)
Torque(7.4V): 3.8 kg-cm (52.8 oz/in)
Speed: 0.10 sec (4.8V) │ 0.085 sec (6.0V) │
Speed: 0.075 sec (7.4V)
Operating Voltage：4.8 ~ 7.4 DC Volts
Weight: 35.0 g (1.23 oz)
Gear Type：Copper&Alu
Connector wire length: JR 180 mm
Operating Temperature: -10℃~60℃
Working frequency：1520μs / 50hz
Size：22.5 x 12.9 x 24.5 mm ( 0.89 x 0.51 x 0.96 in)
