Hobbywing Xerun Axe Plus R3 & Axe 550L 3300Kv R2 Motor

Description

HOBBYWING XERUN AXE PLUS R3 & AXE 550L 3300KV R2 MOTOR

Experience the best of control and power with the Combo Xerun AXE Plus R3 & AXE 550L 3300KV R2 Motor by Hobbywing. This combination offers precise control and impressive performance for RC enthusiasts seeking top-tier performance. The Xerun AXE Plus R3 ESC ensures a smooth ride, while the AXE 550L 3300KV R2 Motor delivers powerful acceleration. Together, they elevate your RC adventures to new heights, ready to tackle any challenge.
Features Motor

FOC (Field-Oriented-Control) for super linearity and high torque
Patented Staggered Pole rotor design for ultra-low torque ripple
Applicable to all weather and track conditions
Built-in high precision magnetic encoder

Technical Specifications Motor
Type: Brushless FOCPole: 4KV Rating: 3300KVLiPo Cells: 2S-3SNo Load Current: 4.7AOuter Diameter: 36.0mmLength: 63.8mmShaft Diameter: 5mmShaft Length: 15.5mmWeight: 247gApplication: 1/10 Rock Crawler

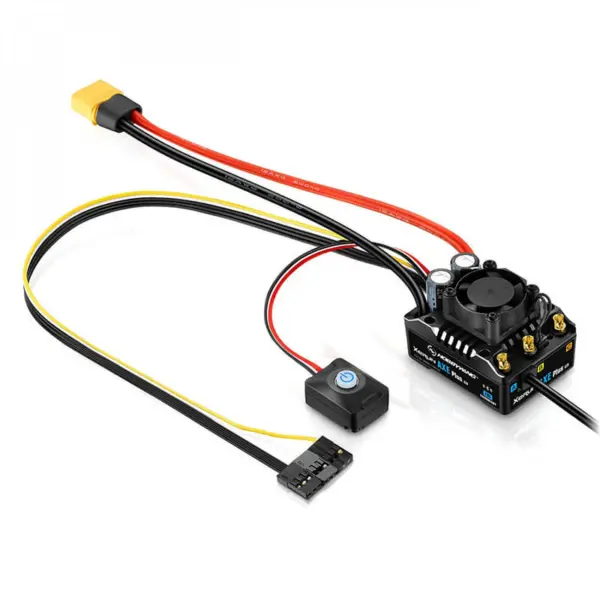

Features XeRun AXE Plus R3

Stronger performance thanks to FOC (Field-Oriented-Control) technology.
Drag brake adjustable up to 200% for unparalleled holding power on slopes.
Super BEC with max. 6A and three voltage levels for using different servos.
Waterproof and dustproof to IP67 standard.
Smart torque delivery and speed control for easy control and constant speed under all loads.
Built-in Bluetooth module.
Multiple controller protection functions including reverse polarity protection.
Only compatible with Xerun AX “R2” and “R3” motor series.

Technical Specifications XeRun AXE Plus R3
Type: Brushless Sensored FOCCurrent (cont./peak): 135A / 600ACells: 2S-6S LiPoMotor Limits: Only supports Xerun-AXE “R2” and “R3” motor seriesAXE R2: 540 / 540L / 550AXE R3: 4274BEC: 6V / 7.4V / 8.4V @ 6A (Switch Mode)Waterproof: YesCables: 1x 12AWG (black, 265mm), 1x 12AWG (red, 265mm)Fan: 25 x 25 x 10mm, powered by BECConnectors: XT60Programming: Per Bluetooth and “HW LINK”-AppFirmware Upgrade: YesDimensions: 49.5 x 37.9 x 32.8mmWeight: 126.5gApplication: 1/10, 1/8, 1/6 Rock Crawler
