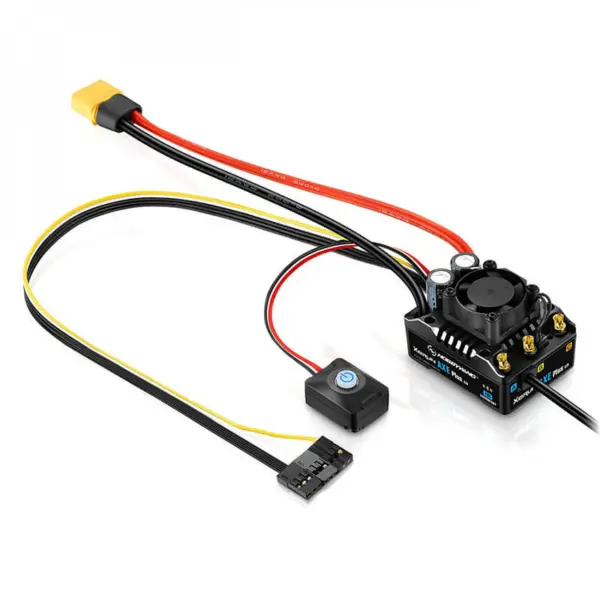

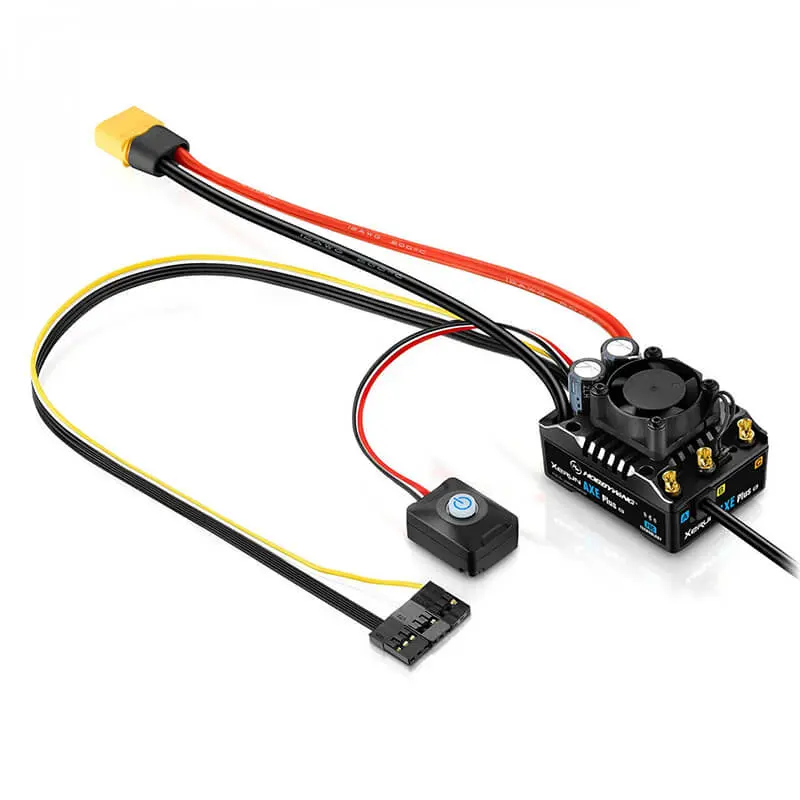

HOBBYWING XERUN AXE PLUS R3 & AXE 540L 2300KV R2 MOTOR

Experience the realm of RC with the Hobbywing Combo Xerun AXE Plus R3 & AXE 540L 2300KV R2 Motor. This combination offers a perfect balance of control and power, ideal for RC enthusiasts seeking top-tier performance in their vehicles. The Xerun AXE Plus R3 ESC ensures smooth operation and precise control, while the AXE 540L 2300KV R2 Motor delivers impressive power and acceleration. Together, they elevate your RC experience to new heights, allowing you to tackle any challenge with confidence.
Features Hobbywing XeRun AXE540 R2 Motor

Minimum cogging torque
Soft start behaviour
Optimized for sensitive performance development
Water and dust proof for almost any situation
Includes a newly designed waterproof sensor port
The built-in high-precision magnetic encoder sends more information to the ESC than before

Technical specifications Hobbywing XeRun AXE540 R2 Motor
Type: Sensored Brushless FOCPoland: 4KV Rating: 2300KVLiPo Cells: 2-3sNo-load Current: 2.5AOuter Diameter: 36.0mmLength: 49.8mmShaft Diameter: 3.175mmShaft Length: 16mmWaterproof: yesWeight: 185gApplication: 1/10 Rock Crawler
Features XeRun AXE Plus R3

Stronger performance thanks to FOC (Field-Oriented-Control) technology.
Drag brake adjustable up to 200% for unparalleled holding power on slopes.
Super BEC with max. 6A and three voltage levels for using different servos.
Waterproof and dustproof to IP67 standard.
Smart torque delivery and speed control for easy control and constant speed under all loads.
Built-in Bluetooth module.
Multiple controller protection functions including reverse polarity protection.
Only compatible with Xerun AX “R2” and “R3” motor series.

Technical Specifications XeRun AXE Plus R3
Type: Brushless Sensored FOCCurrent (cont./peak): 135A / 600ACells: 2S-6S LiPoMotor Limits: Only supports Xerun-AXE “R2” and “R3” motor seriesAXE R2: 540 / 540L / 550AXE R3: 4274BEC: 6V / 7.4V / 8.4V @ 6A (Switch Mode)Waterproof: YesCables: 1x 12AWG (black, 265mm), 1x 12AWG (red, 265mm)Fan: 25 x 25 x 10mm, powered by BECConnectors: XT60Programming: Per Bluetooth and “HW LINK”-AppFirmware Upgrade: YesDimensions: 49.5 x 37.9 x 32.8mmWeight: 126.5gApplication: 1/10, 1/8, 1/6 Rock Crawler

Looking for more Hobbywing RC products? Explore our full range of Hobbywing RC cars, parts, and accessories at radio-controlled.co.uk. We stock the latest Hobbywing releases, upgrades, and spares to keep your rig running at peak performance.
