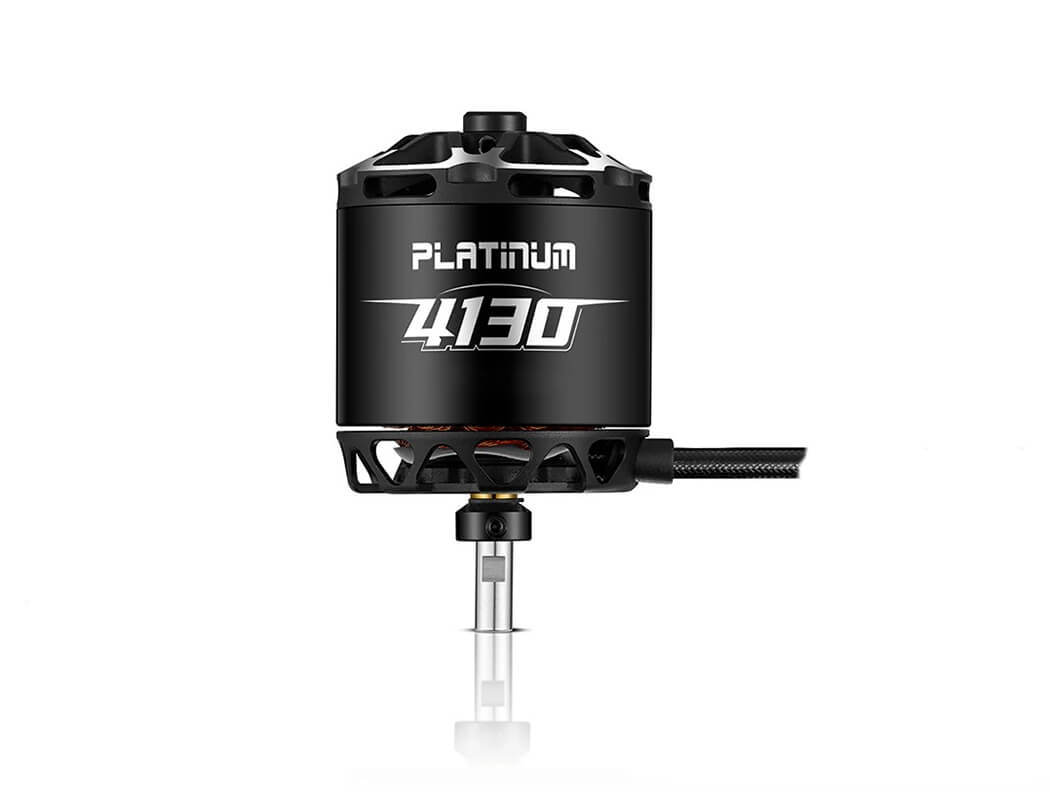

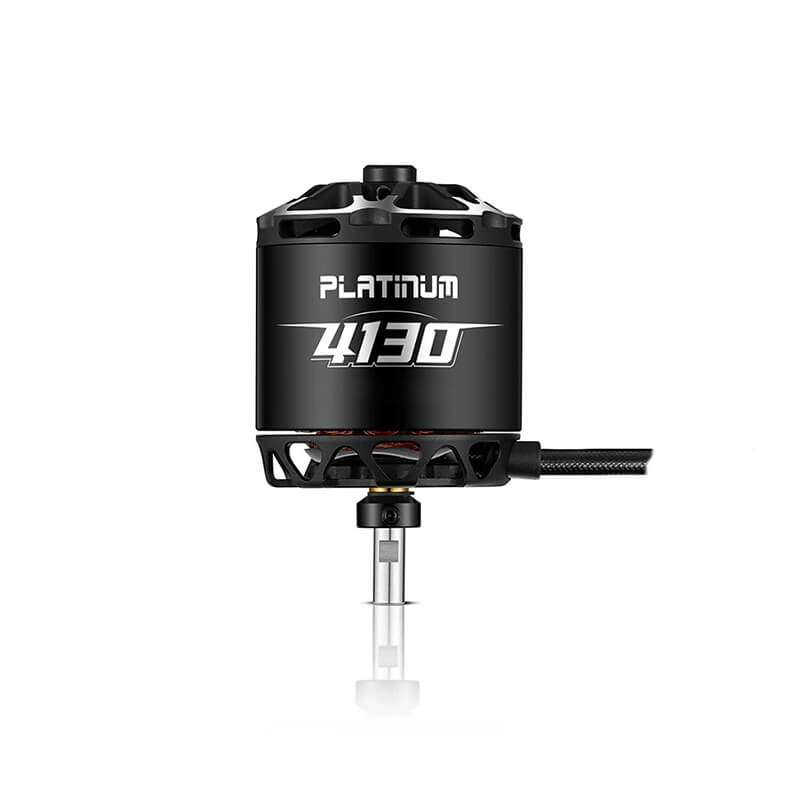

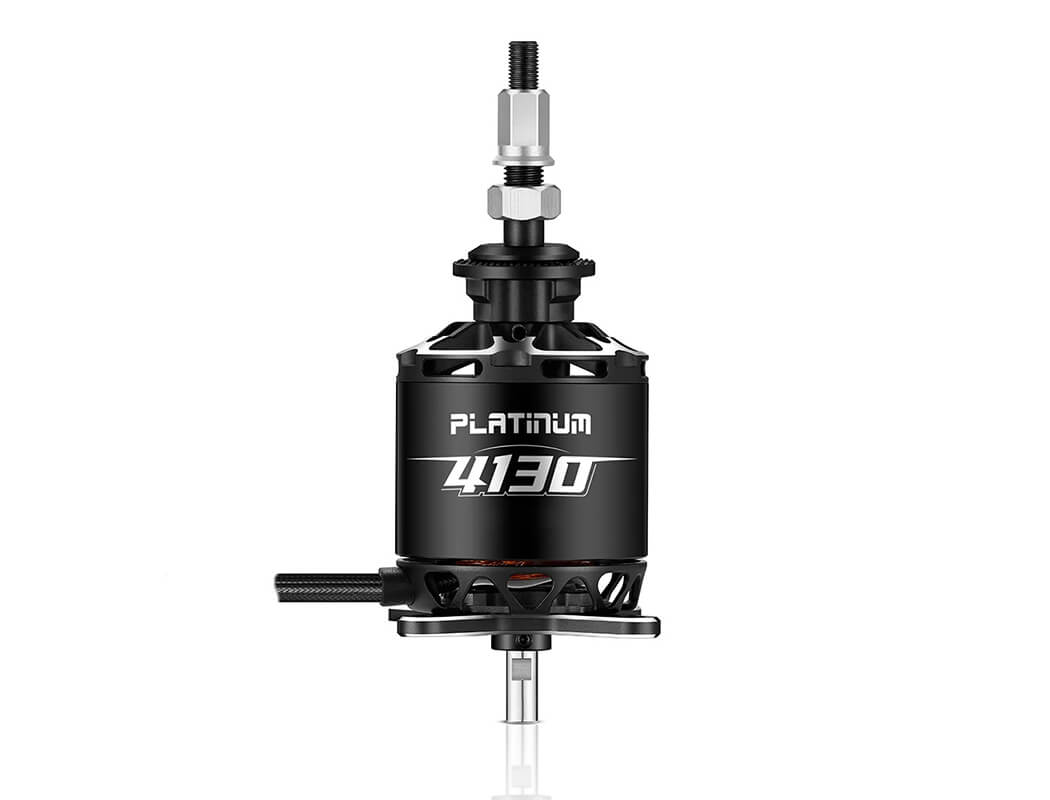

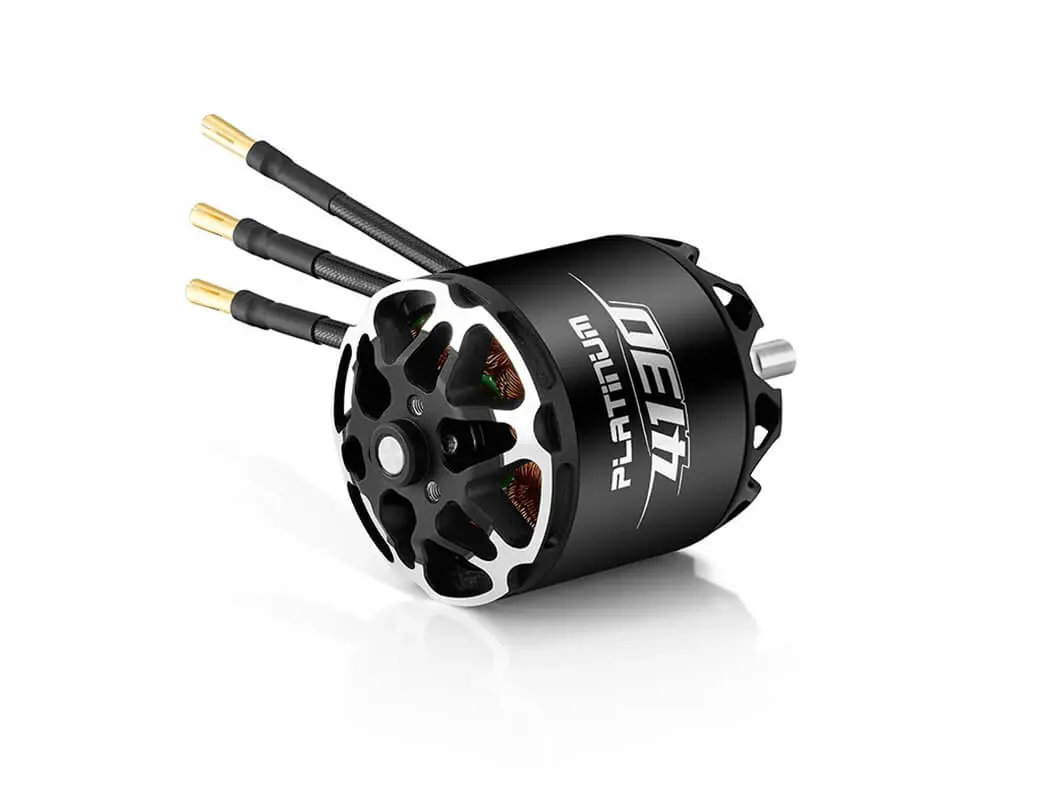

Hobbywing Platinum 4130sl 490kv Fixed Wing Motor

HOBBYWING PLATINUM 4130SL 490KV FIXED WING MOTOR

Specifications

Motor Size: Φ49.5 *82.3mm
Stator Size: Φ40.6*30mm
Stator Process: High standard silicon steel sheet,180? high temperature resistance paint-coa
Enamelled Wire: 200?
Props Mounting Dimensions: Φ15mm-3*M3
Motor Mounting Dimensions: Φ30mm-4*M4
Slot & Pole: 12N14P
Dynamic Balance: ≤10mg
Bearing: 696ZZ
Motor Axle Diameter: Φ6mm
Isolation Test: 500V AC high voltage resistance test
KV: 490
Battery (LiPo): LiPo-6S
No-load Current: 2.4A/22.2V
Maximum Current (Non-hermetic Ambient Temperature ≤ 25?: 129.3A/55s
Max Power: 2867W/55s
Max Thrust: 9.12kg
Resistance: 10.6mΩ
Wire Size: Enamelled Wire Output
Wire Length: 90mm
Weight (With Wire): 418g
Recommended ESC: PLATINUM 120A V4, PLATINUM 150A V5
Recommended Propeller: 6S:15X8E,16X6E,, 16X8E,17X8E
