Explore Hobbywing
Shop Hobbywing RC Parts About Hobbywing Brand

£91.99

Rated 4.2 out of 5 based on 5 customer ratings
(5 customer reviews) | Add a review.

Just a few left

SKU HW30416052 Category Tag Brand:

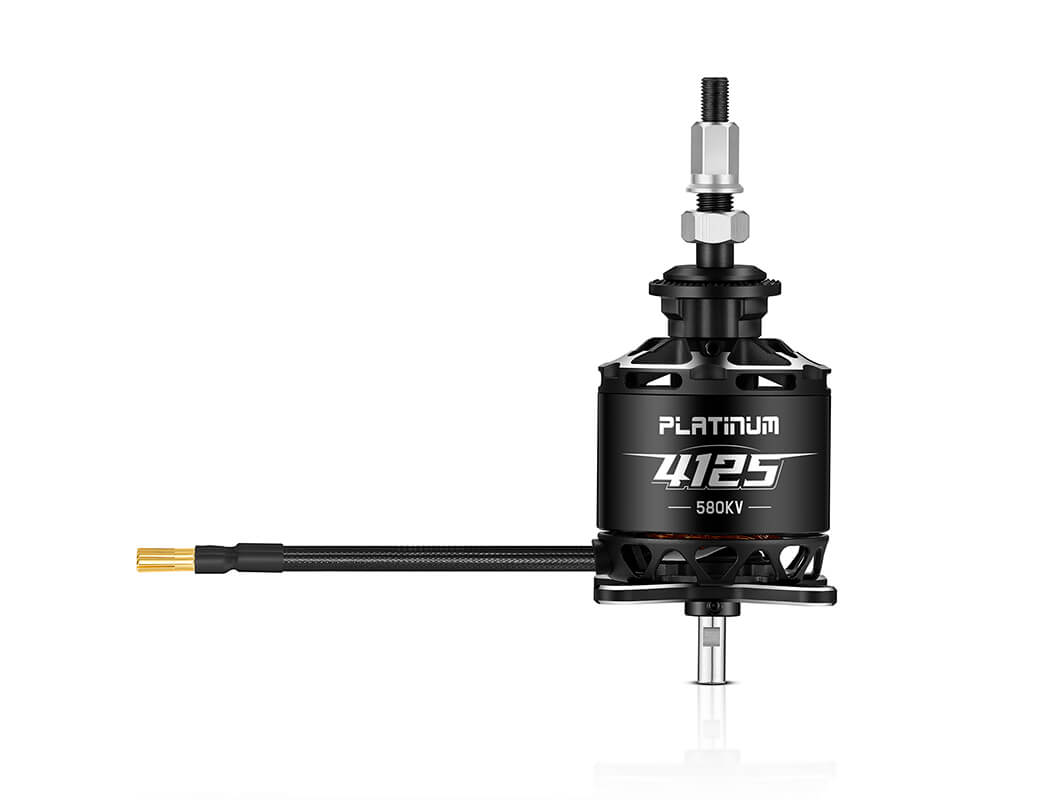

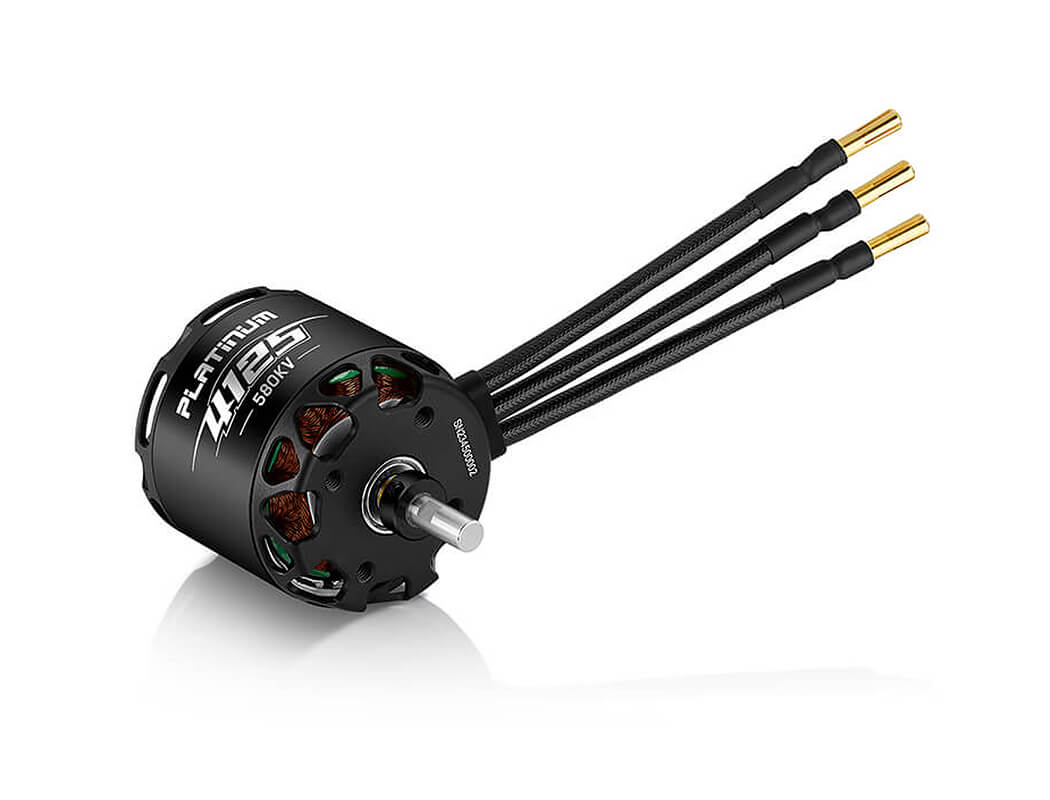

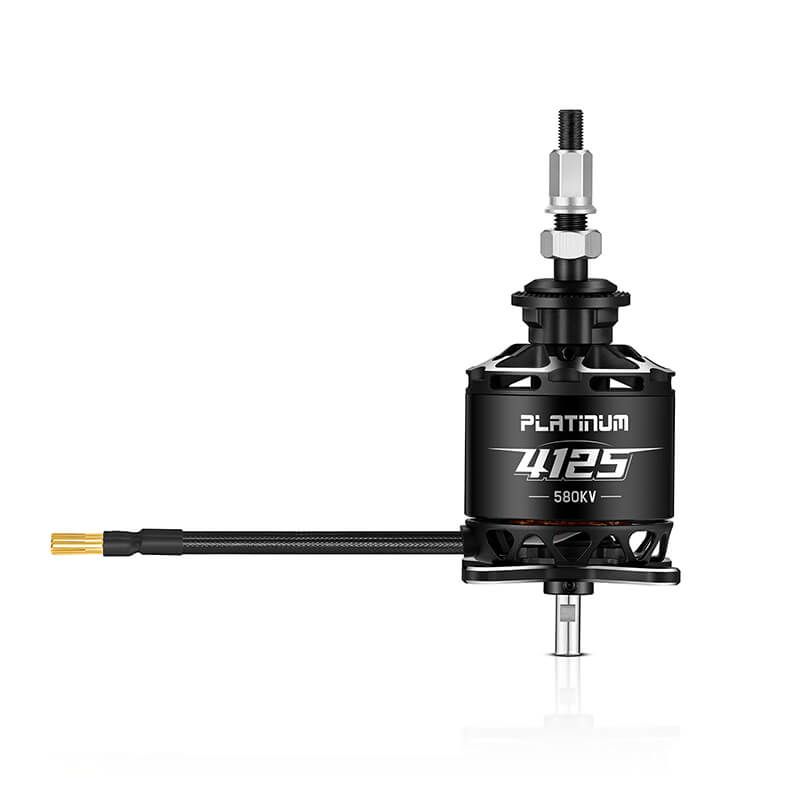

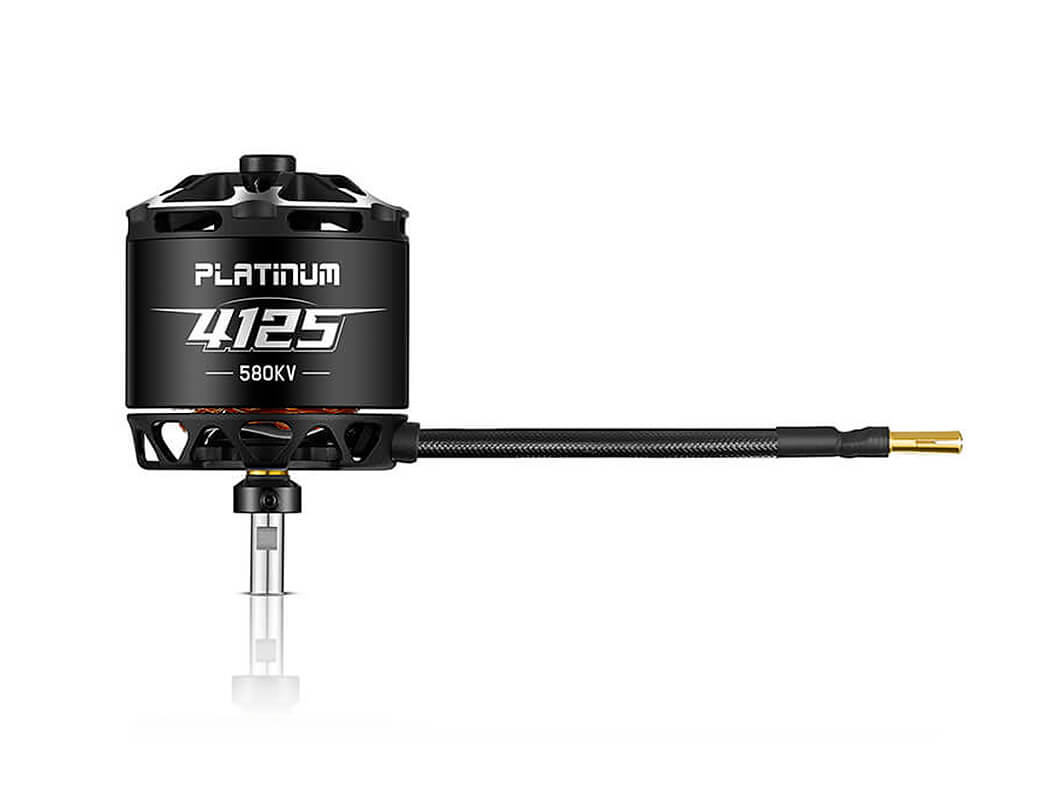

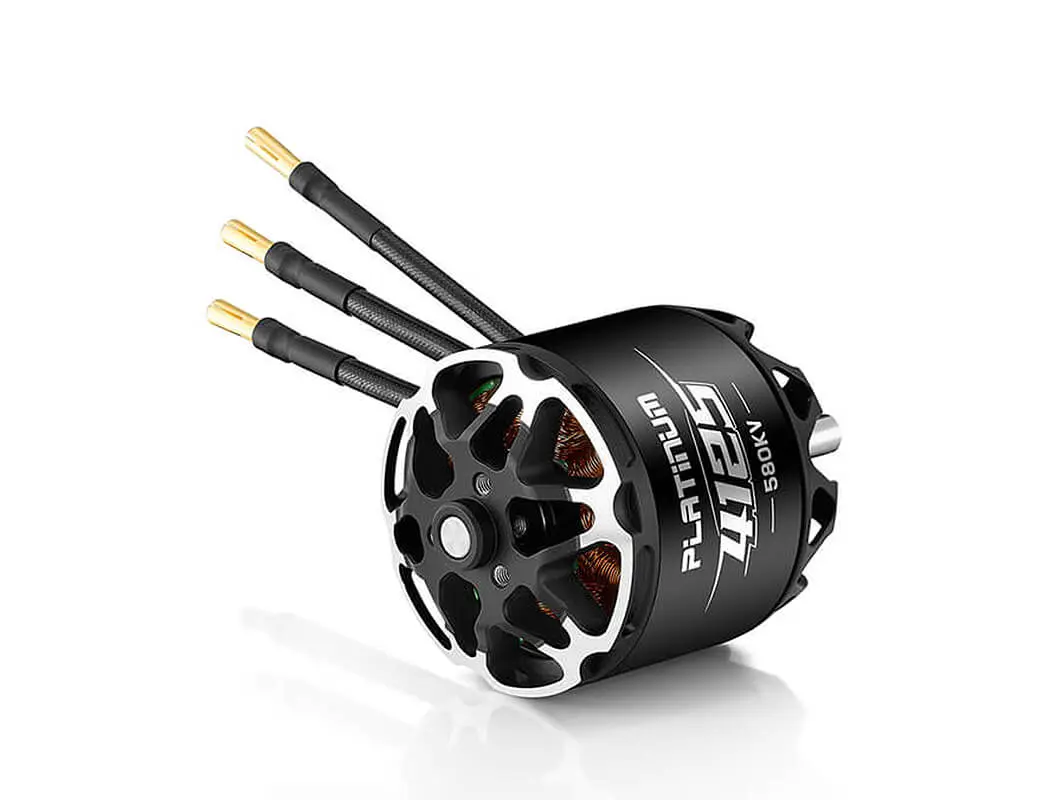

Hobbywing Platinum 4125sl 580kv Fixed Wing Motor

Specifications

Motor Size: Φ49.5 *77.3mm
Stator Size: Φ40.6*25mm
Stator Process: High standard silicon steel sheet,180? high temperature resistance paint-coa
Enamelled Wire: 200?

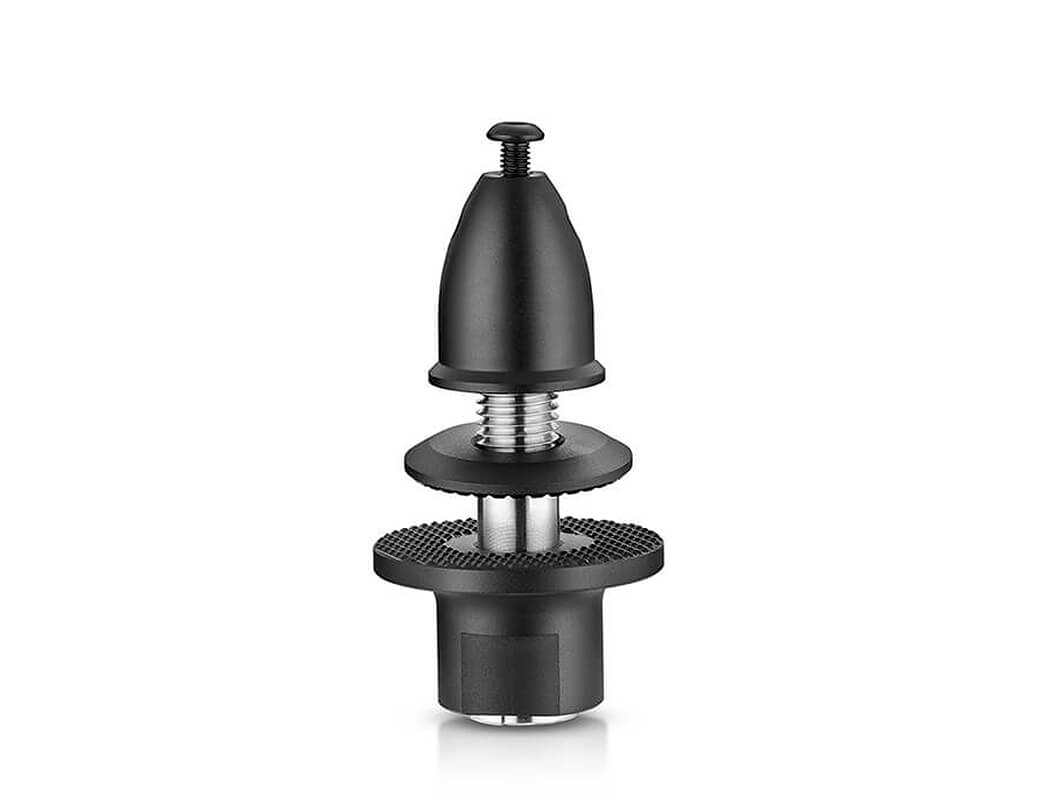

Props Mounting Dimensions: Φ15mm-3*M3
Motor Mounting Dimensions: Φ30mm-4*M4
Slot & Pole: 12N14P
Dynamic Balance: ≤10mg
Bearing: 696ZZ
Motor Axle Diameter: Φ6mm
Isolation Test: 500V AC high voltage resistance test
KV: 580
Battery (LiPo): LiPo-6S
No-load Current: 3.9A/22.2V
Maximum Current (Non-hermetic Ambient Temperature ≤ 25?: 119.7A/1min17s
Max Power: 2289W/1min17s
Max Thrust: 7.35kg
Resistance: 9.5mΩ
Wire Size: Enamelled Wire Output
Wire Length: 90mm
Weight (With Wire): 370g
Recommended ESC: PLATINUM 120A V4, PLATINUM 150A V5
Recommended Propeller: 5S:15x8E,16x8E,, 6S:14x6E,14x7E,15x6E

Browse the full Hobbywing range at Radio Controlled UK, including Hobbywing brushless motors, Hobbywing ESCs and Hobbywing motor and ESC combos. View all current stock in the Hobbywing product archive.
