About this product

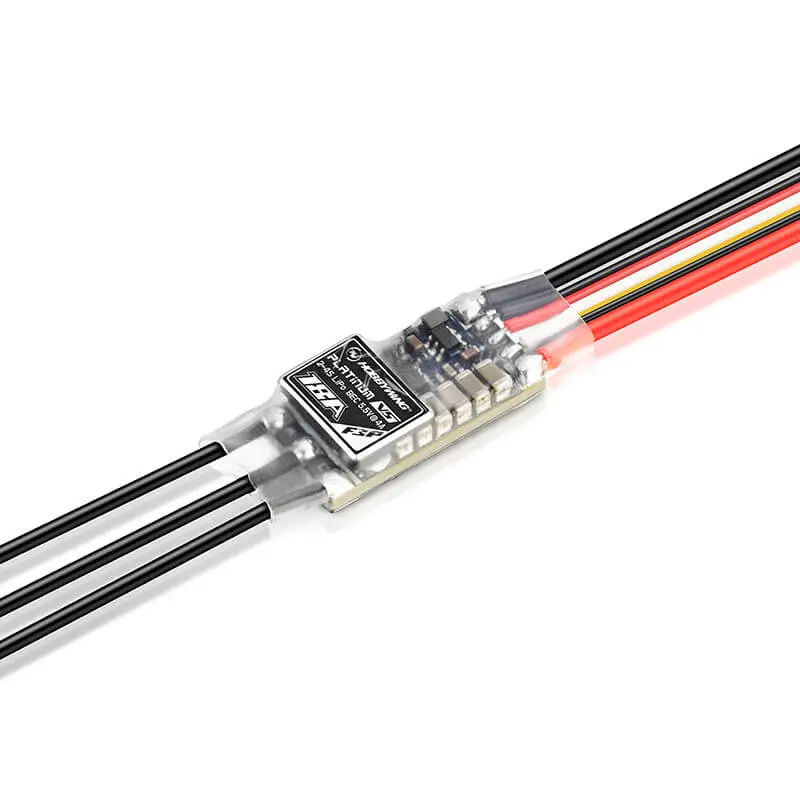

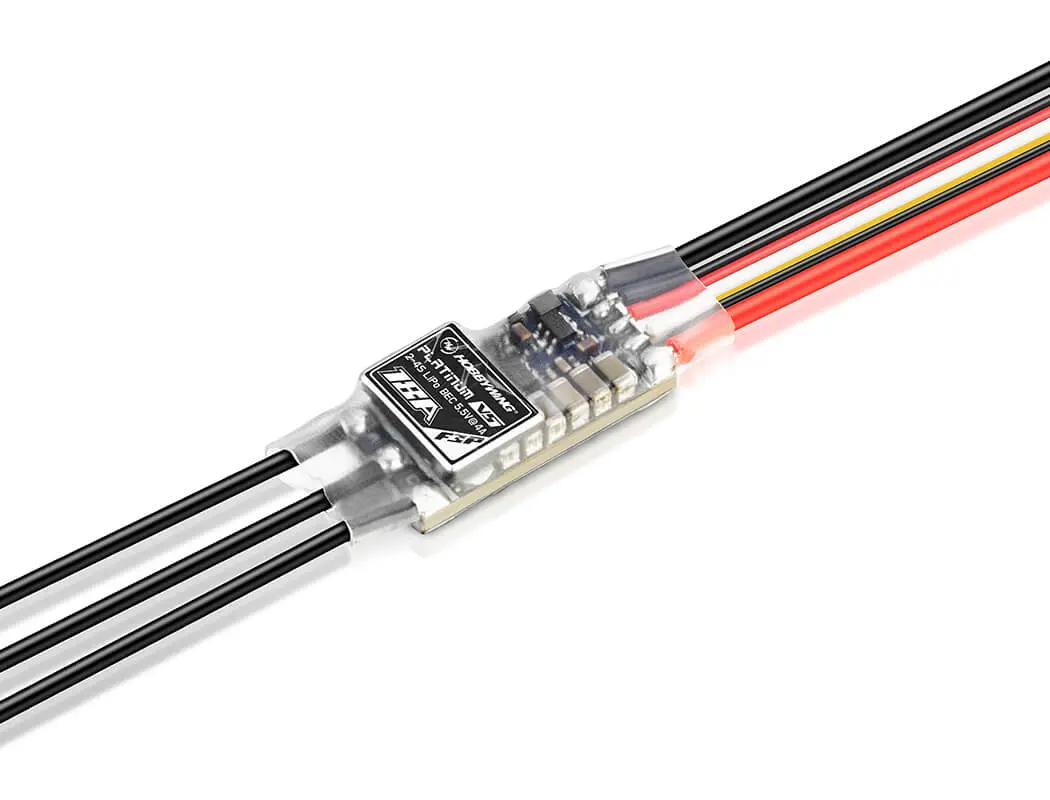

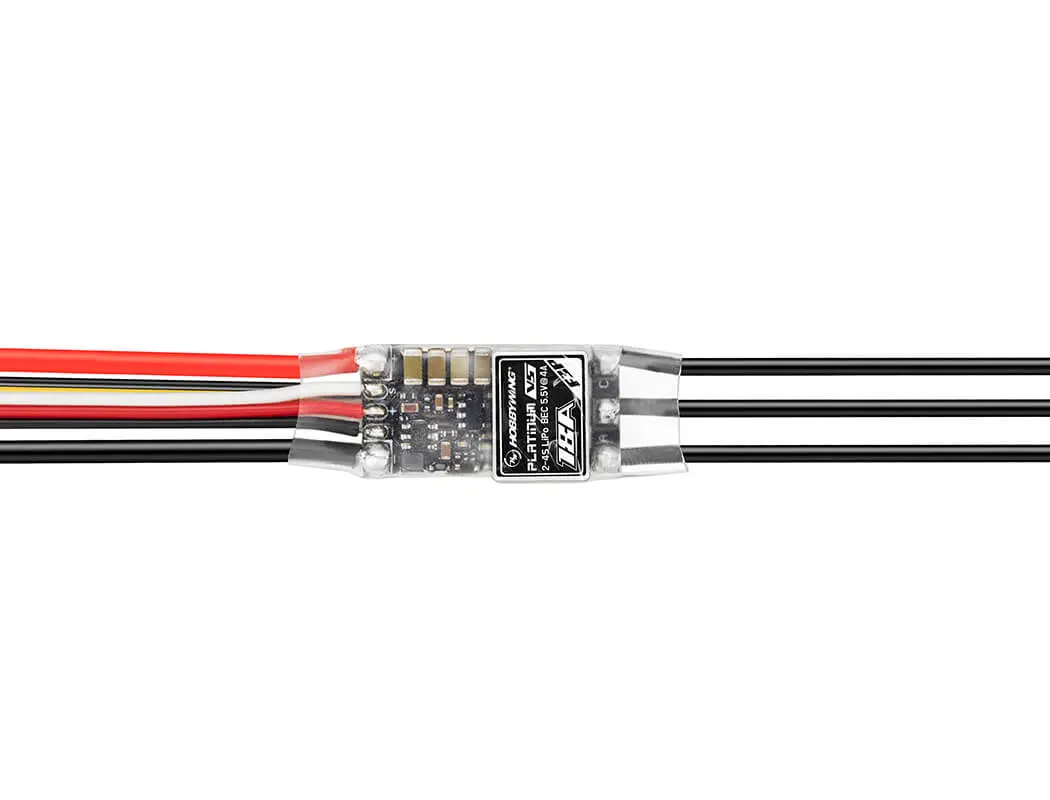

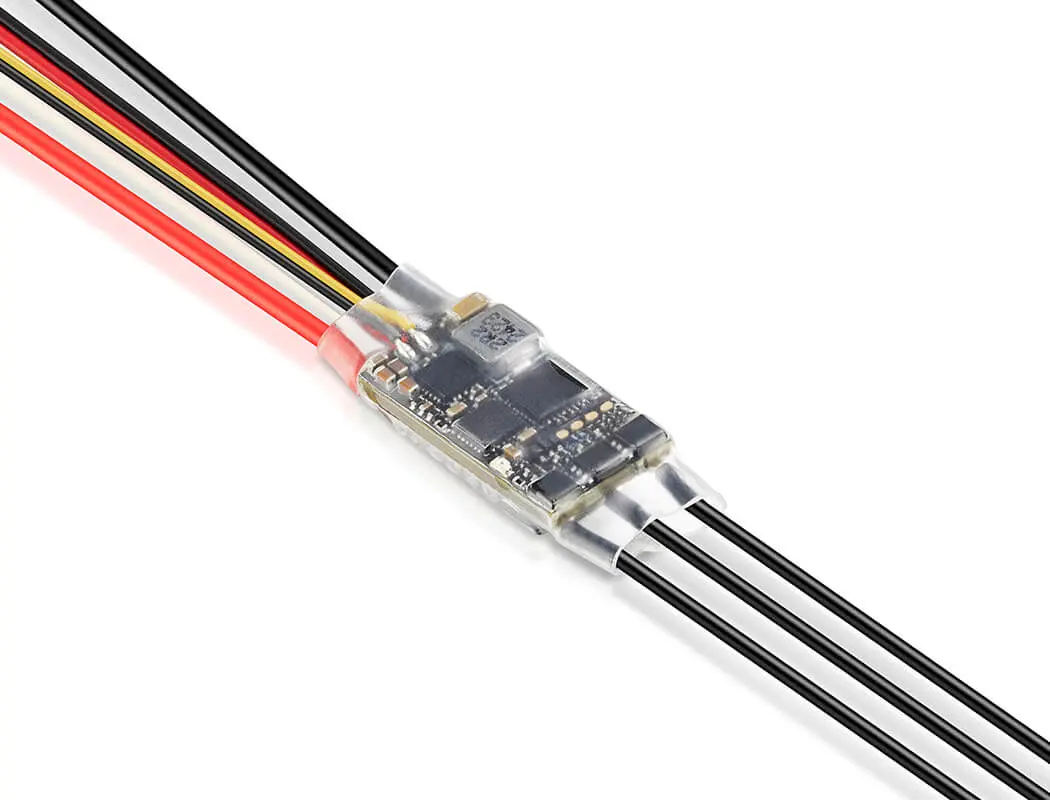

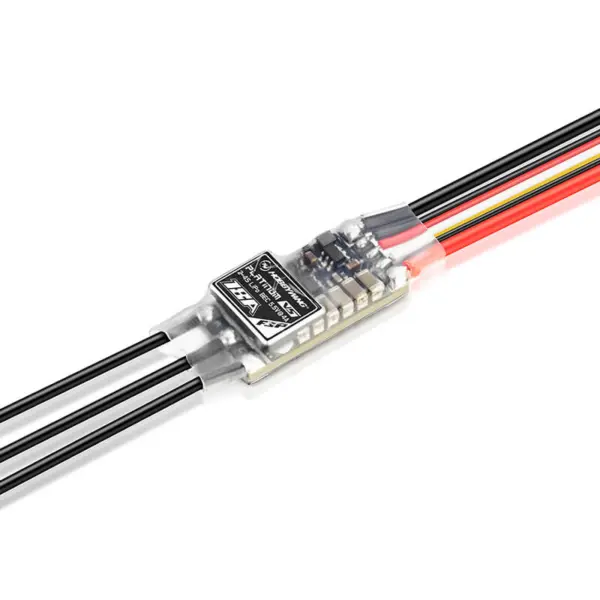

HOBBYWING PLATINUM 18A V5 F3P ESC
Specifications
Brushed/Brushless: Brushless
High Voltage/Regular: Regular
Cont./Peak Current: 18A/30A
Input Voltage: 2-4S LiPo
BEC Output: Switch Mode:5.5V & Cont. 4A,Peak 6A
Input Wires: Red-18AWG-100mm*1/Black-18AWG-100mm*1
Output Wires: Black-20AWG-100mm*3
Input Connectors: No
Output Connectors: 2.0mm Gold Connectors (Female)
ESC Programing via:
Transmitter: Not Supported
LED Program Card: Not Supported
LED Program Box: Not Supported
LCD Program Box: Supported
OTA Programmer: Supported
Program Port: Separate Program Cable
Firmware:
Firmware Upgrade: Supported
Telemetry Function: Futaba S.Bus2;etc.
Size: 24.6*12.8*7.5mm
Weight: 11.9g (INCL wires)
Application: 120g-320g F3P electric fixed-wing
