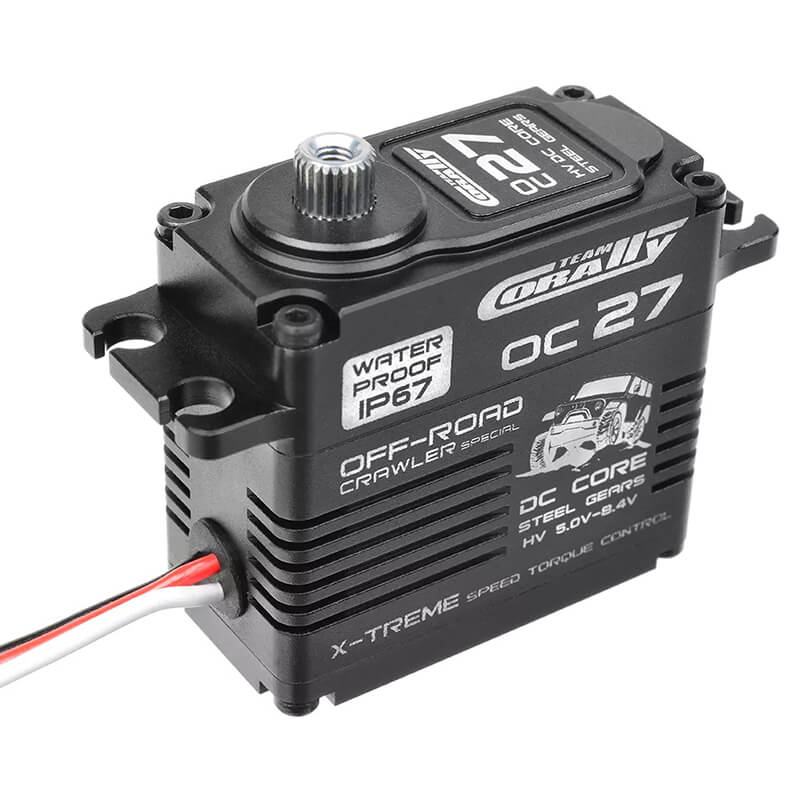

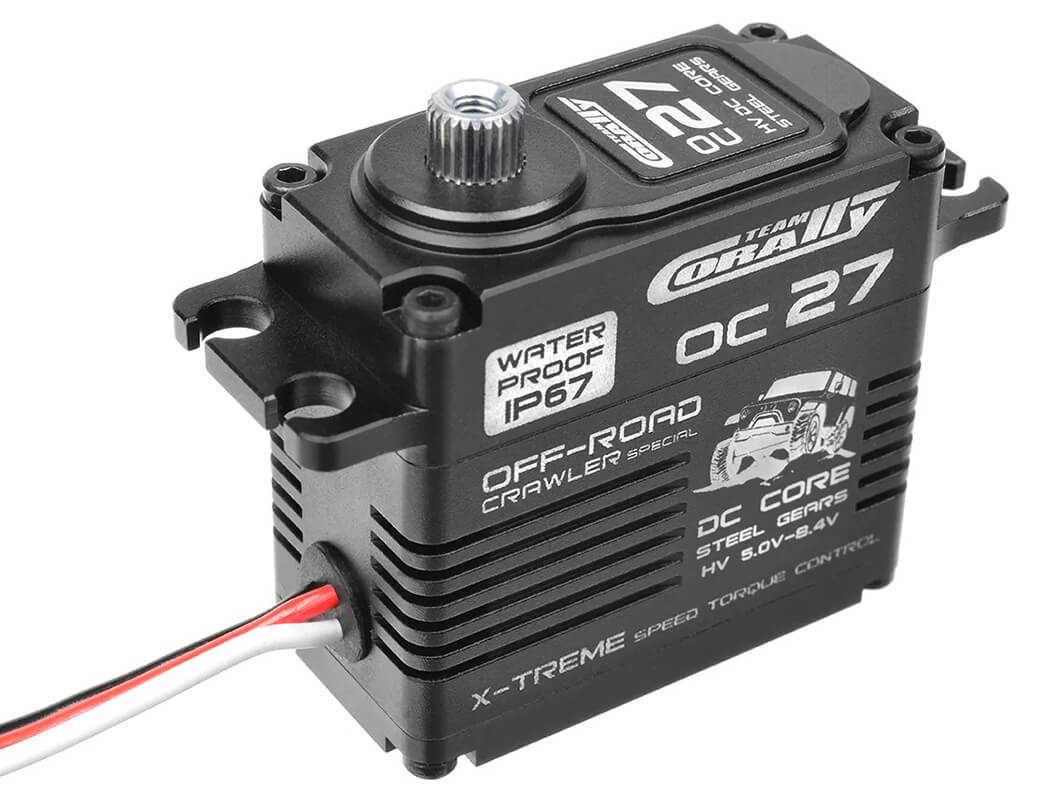

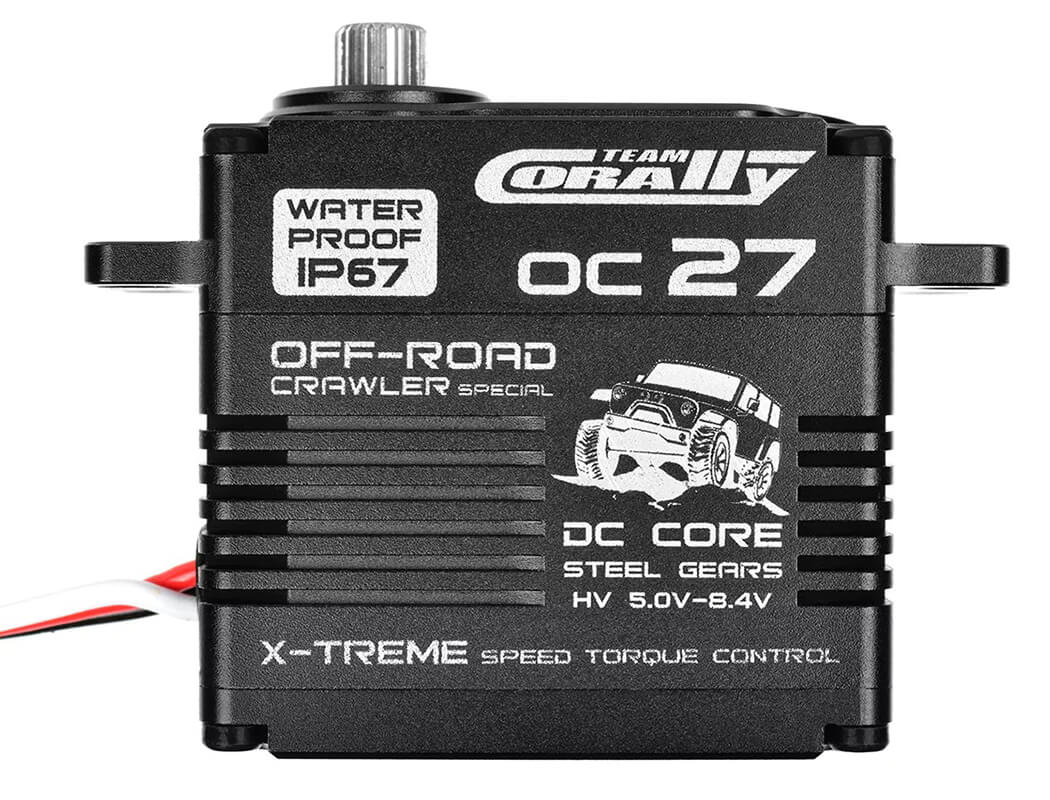

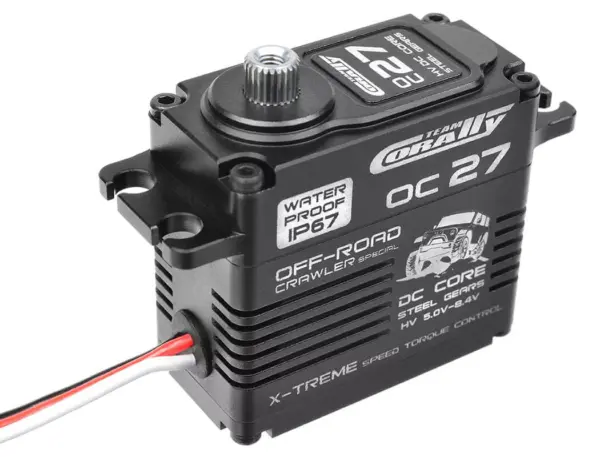

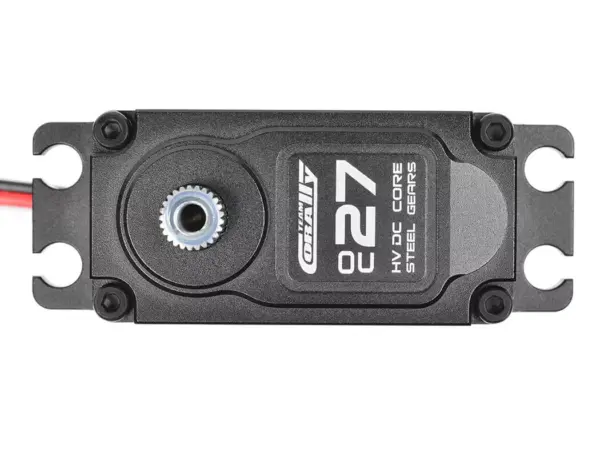

Corally Oc27 Hv Digital Servo 5-8.4V Ip67 Steel Gear Alloy C

CORALLY OC27 HV DIGITAL SERVO 5-8.4V IP67 STEEL GEAR ALLOY C

Are you looking for some powerful control!

We have developed these servos with the basher in mind, ultimate digital power, precision and reliability.

Features

• Full CNC machined alloy case
• Digital LHV 5.0 – 8.4V

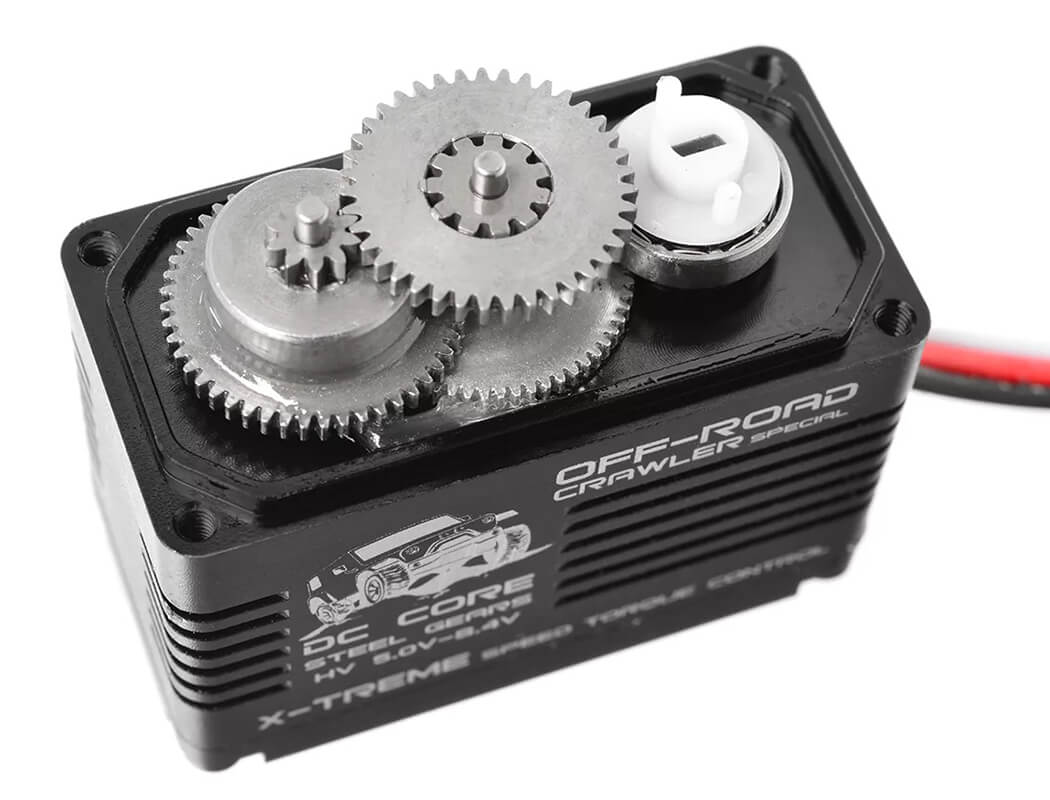

• Metal gears
• Ball Raced
• Core DC motor
• High speed and torque
• IP67 Waterproof

Specifications

Speed 60°/Sec @ 6.0V: 0,15
Speed 60°/Sec @ 7.4V: 0,13
Speed 60°/Sec @ 8.4V: 0,11
Torque kg/cm @ 6.0V: 17,7
Torque kg/cm @ 7.4V: 23,6
Torque kg/cm @ 8.4V: 27,3
Servo Type: Standard Servo

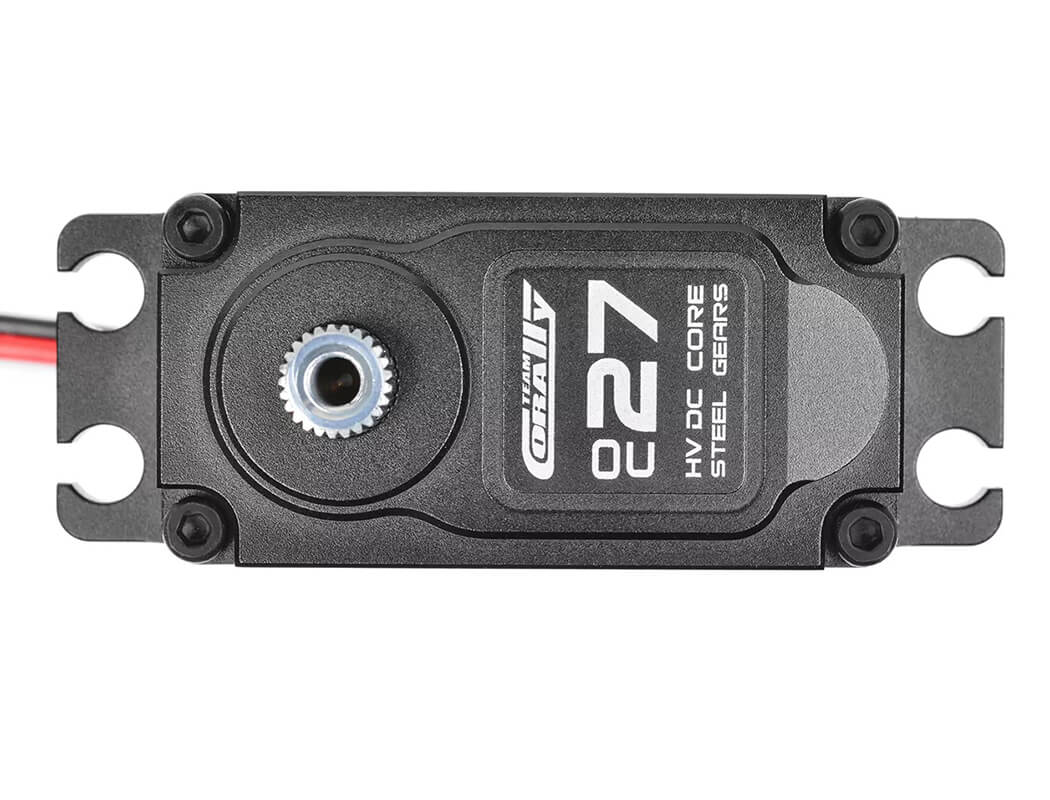

Spline Type: 25T Spline
Length (mm): 40
Width (mm): 20
Height (mm): 37
Technology: Digital HV
Operating Voltage (V): 6.0V – 8.4V
Servo Motor: DC Core Motor
Servo Protection: Waterproof IP67
Servo Positioning: VR Potentiometer – Direct Drive
Servo Gears: Steel Gears
Servo Case: Aluminium Case

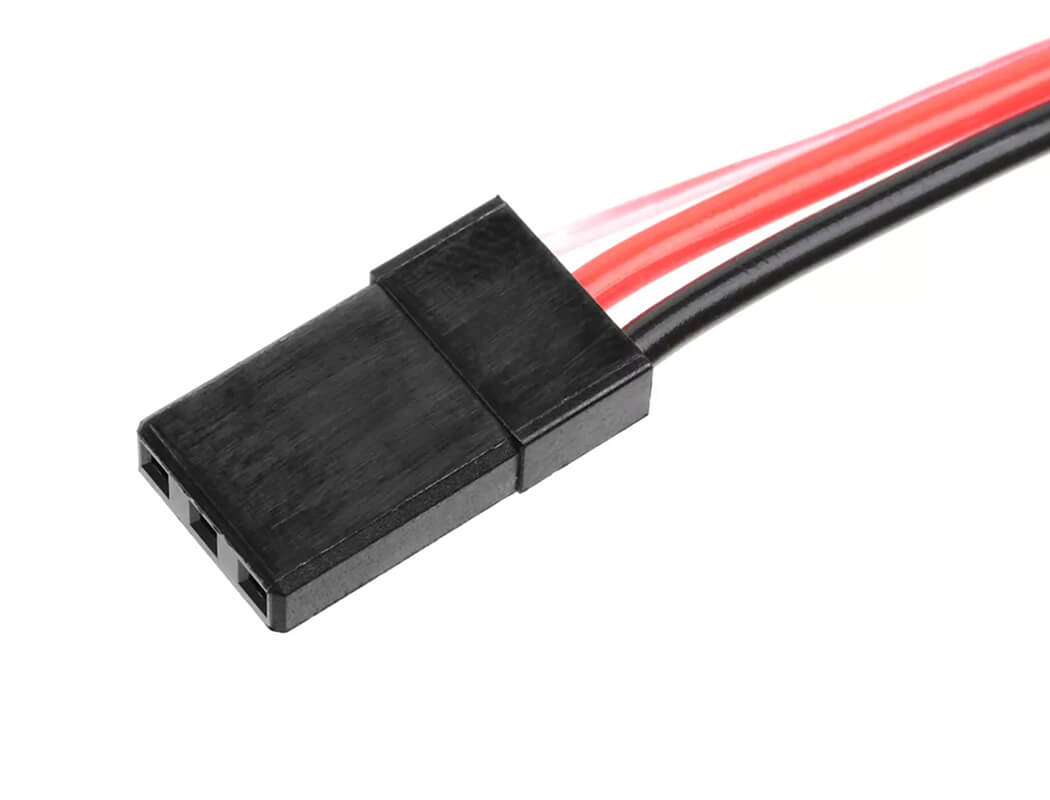

Connector: JR Universal + Coloured Lead
