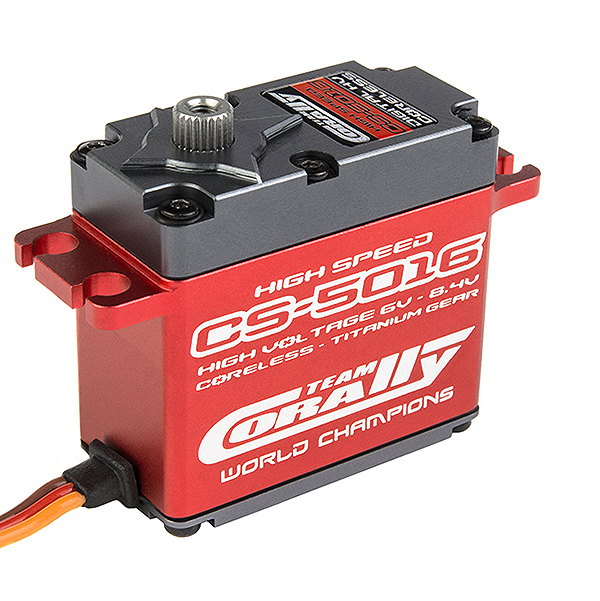

Corally Cs5016 Hv High Speed Servo High Volt Coreless Motor Titanium/Ballbearing/Alloy Case

Corally Cs5016 Hv High Speed Servo High Volt Coreless Motor Titanium/Ballbearing/Alloy Case

£66.69

Add a review.

Just a few left

SKU C-52000 Category Tag Brand:
Joshua Evans
Joshua Evans
Ordered a new brushless motor and ESC combo for my crawler, and it’s working like a dream. Shipping was surprisingly fast, and the parts were exactly as described. I had a minor issue with the wiring, and customer service helped me figure it out over email within a few hours. Great experience overall.
Thomas Pearson
Thomas Pearson
Just got my first RC drift car from this site, and it’s been a blast! The car arrived well-packed and in perfect condition. I had some questions about the best batteries to pair with it, and their support team was quick to respond with solid advice. It’s refreshing to deal with a company that actually knows their products. Will definitely order from them again.
LT
LT
Purchased:Kyosho EP Fantom 4WD EXT CRC II 112 Kit (Legendary Series)
Good communication with the seller would definitely use again.
Pete Goddard
Pete Goddard
Purchased: Flywing BELL-206-V3 RTF RC Helicopter
All good, would order from this seller again.
Alex
Alex
Purchased: MJX H8H Hyper Go RC Crawler Brushless 1:8th Scale Crawler Truck (Blue Orange)
Arrived with in 2 days, Arrived as stated in a well Packaged box, will definitely be ordering again.
Oli Short
Oli Short
Delivery was a little late (3 days), but arrived 1 day late. Think this was royal mail to be fair. Everything else good!

Are looking for some powerful control?

We have developed these servos with the racer in mind, ultimate digital power, precision and reliablity.

Features

  • Full CNC machined alloy case
  • High Voltage 6.0 – 8.4V
  • Titanium gears
  • Ball Raced
  • Coreless motor
  • Ultra high speed and torque
  • Water resistant

Specifications

Motor Type: Coreless Motor
Servo Technology: Digital Ultra High Voltage
Input Voltage (V): 6.0V – 8.4V
Weight (g): 72 g
Servo Type / Size: Standard
Length (mm): 40.5 mm
Gear Material: Titanium Gears
Width (mm): 20.5 mm
Ball Beared: Ball Beared
Height (mm): 36.0 mm
Servo Case: CNC Alloy
Servo Power – Torque Kg/cm: 16 – 25 Kg/cm
Servo Speed 60°/sec: 0.05 – 0.10 Sec/60°
Protection: Waterproof
Speed 60°/Sec @ 6.0V: 0.07 Sec/60°
Speed 60°/Sec @ 7.4V: 0.06 Sec/60°
Speed 60°/Sec @ 8.4V: 0.05 Sec/60°
Torque kg/cm @ 6.0V: 11.8 Kg/cm
Torque kg/cm @ 7.4V: 14.4 Kg/cm
Torque kg/cm @ 8.4V: 16.5 Kg/cm
Connector type: JR
Spline size: 25T Spline
Thermal Protection Temperature: Waterproof
Water Protection: Waterproof
